UPS - AC 120 V - 1.98 kW - 2200 VA - 1-phase - RS-232, USB - output connectors: 10 - 6 ft cord - Canada, United States - black - APC Take-Back - with APC SmartConnect
| Main Specifications | |
|---|---|

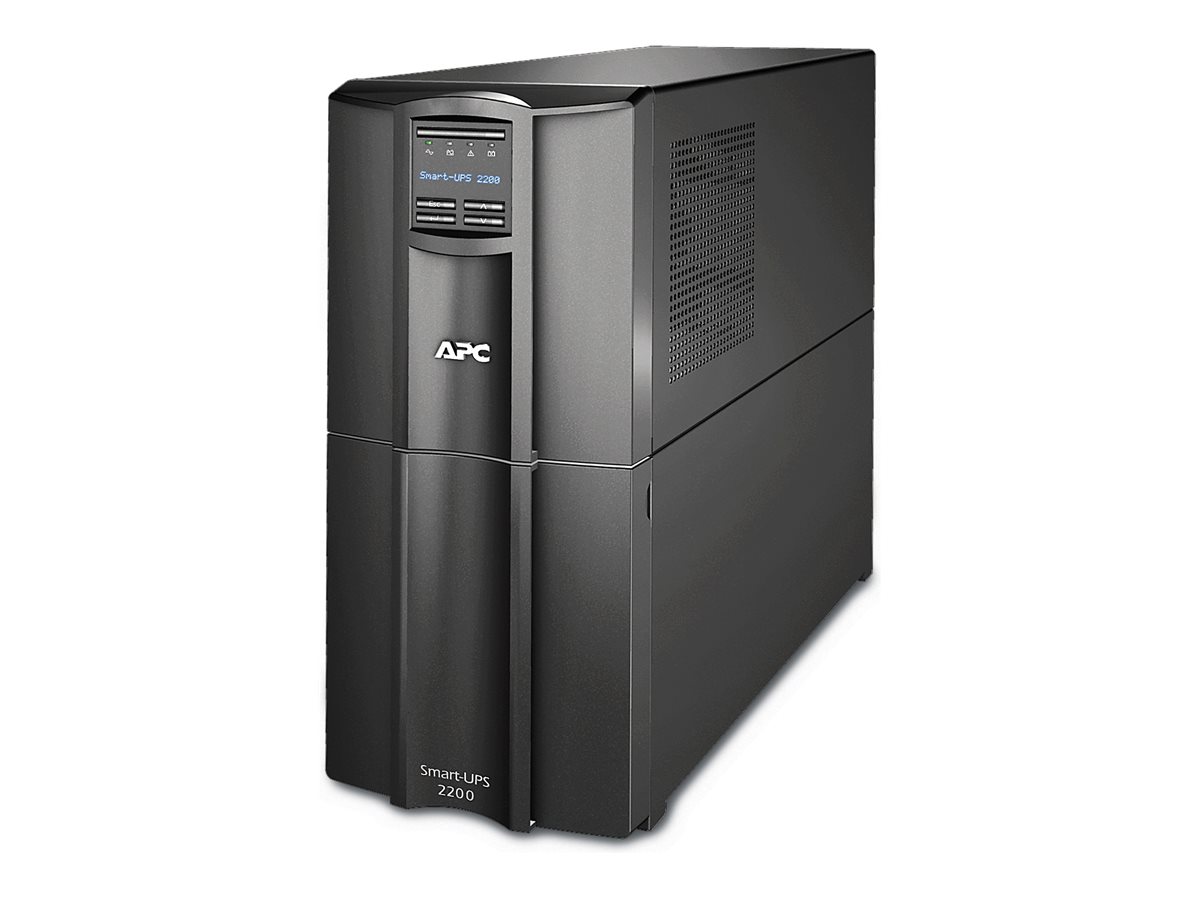

| Product Description | APC Smart-UPS SMT2200C - UPS - 1.98 kW - 2200 VA - with APC SmartConnect |
| Device Type | UPS - external |
| Cord Length | 6 ft |
| Weight | 112.24 lbs |
| Localization | Canada, United States |
| Input Wiring | 1-phase |
| Input Voltage | AC 120 V |
| Output Voltage | AC 120 V ± 5% |
| Power Capacity | 1.98 kW / 2200 VA |
| Input Connectors | 1 x power NEMA 5-20P |
| Output connectors | 8 x power NEMA 5-15R ¦ 2 x power NEMA 5-20R |
| Battery | Lead acid |
| Batteries Qty | 1 |
| Run Time (Up To) | 10.1 min at full load |
| Networking | RS-232, USB |
| Color | Black |
| Pricing Type | APC Take-Back |
| Packaging Recycled Content | Made of recycled cardboard |
| Dimensions (WxDxH) | 7.7 in x 21.5 in x 17 in |
| Environmental Standards | ENERGY STAR |
| Manufacturer Warranty | 3-year warranty |
| Bundled with | APC SmartConnect |
| General | |
| Device Type | UPS - external |
| Cord Length | 6 ft |
| Color | Black |
| Localization | Canada, United States |
| Bundled with | APC SmartConnect |
| Expansion / Connectivity | |
| Interfaces | 1 x management (RS-232) ¦ 1 x USB ¦ 1 x EPO (emergency power off) ¦ 1 x SmartConnect |
| Expansion Slots | 1 (total) / 1 (free) x SmartSlot |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years ¦ Limited warranty - batteries - 2 years |
| Miscellaneous | |
| Cables Included | Serial cable - external ¦ USB cable - external ¦ Power cable 6 ft |
| Features | User-replaceable removable battery, audible alarm, emergency power off, LCD display, Automatic Voltage Regulation (AVR), cold-start function, automatic self-test, predicitive failure notification, hot-swappable batteries, energy meter |
| Compliant Standards | CSA, UL 1449, UL 1778, FCC Part 15 A |
| Pricing Type | APC Take-Back |
| Networking | |
| Remote Management Interface | RS-232, USB |
| Software / System Requirements | |
| Software Included | Drivers & Utilities |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 0 - 95% |
| Sound Emission | 45 dBA |
| Battery | |
| Quantity | 1 |
| Technology | Lead acid |
| Run Time (Up To) | 10.1 min at full load ¦ 28.3 min at half load ¦ 587 min at 50 Watts ¦ 339 min at 100 Watts ¦ 175 min at 200 Watts ¦ 113 min at 300 Watts ¦ 82 min at 400 Watts ¦ 63 min at 500 Watts ¦ 51.3 min at 600 Watts ¦ 42.4 min at 700 Watts ¦ 35.8 min at 800 Watts ¦ 30.8 min at 900 Watts ¦ 26.8 min at 1000 Watts ¦ 20.8 min at 1200 Watts ¦ 16.7 min at 1400 Watts ¦ 13.6 min at 1600 Watts ¦ 11.2 min at 1800 Watts |
| Recharge Time | 3 hours |
| Transfer Time | 6 ms |
| Features | Maintenance free, sealed, leak-proof |
| Power Device | |
| UPS Technology | Line interactive |
| Input Voltage | AC 120 V |
| Input Voltage Range | AC 82 - 144 V |
| Input Voltage Range (Adjustable) | AC 75 - 154 V |
| Frequency Provided | 50/60 Hz ± 3% |
| Input Wiring | 1-phase |
| Frequency Required | 50/60 Hz ± 3% |
| Input Connectors | 1 x power NEMA 5-20P |

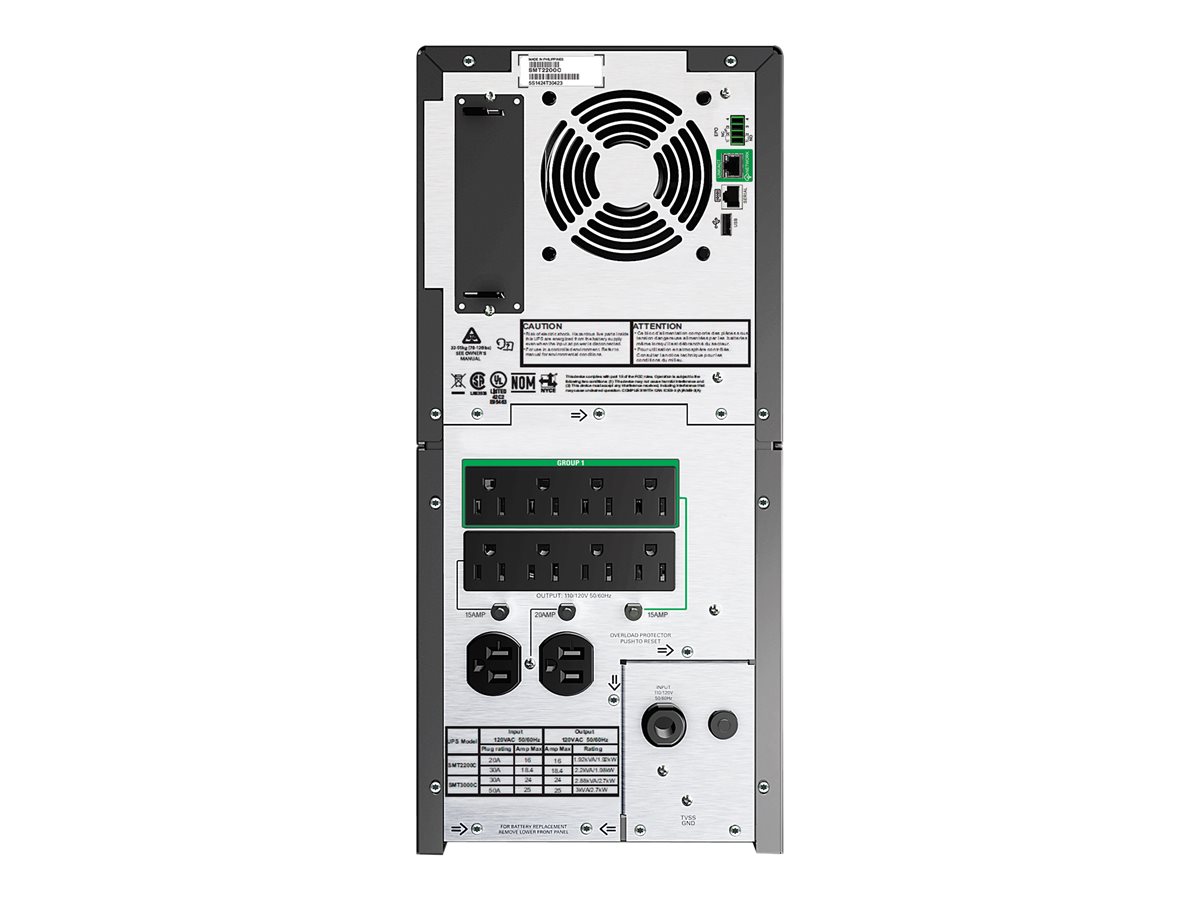

| Power Output Connectors Details | 8 x power NEMA 5-15R ¦ 2 x power NEMA 5-20R |
| Output Voltage | AC 120 V ± 5% - 50/60 Hz |
| Power Capacity | 1.98 kW / 2200 VA |
| Output Waveform | Sinewave |
| Surge Suppression | Yes |
| Surge Energy Rating | 530 joules |
| Circuit Protection | Circuit breaker |
| Dimensions & Weight | |
| Width | 7.7 in |
| Depth | 21.5 in |
| Height | 17 in |
| Weight | 112.24 lbs |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 15 in |
| Shipping Depth | 30 in |
| Shipping Height | 22 in |
| Shipping Weight | 134.28 lbs |
| Sustainability Information | |
| ENERGY STAR | Yes |
| Packaging Recycled Content | Made of recycled cardboard |
