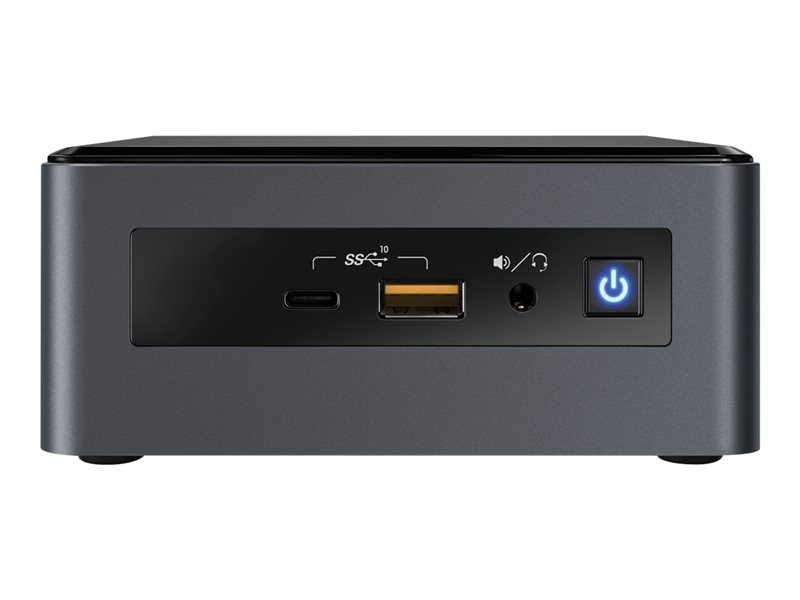

Barebone - mini PC - 1 x Core i5 8265U / up to 3.9 GHz - RAM 8 GB - Radeon R540X - Gigabit Ethernet
| Main Specifications | |
|---|---|
| Product Description | Intel Next Unit of Computing Kit 8 Mainstream-G kit - mini PC Core i5 8265U 1.6 GHz - 8 GB - no HDD |
| Type | PC barebone - mini PC |
| Processor | 1 x Intel Core i5 (8th Gen) 8265U / 1.6 GHz (up to 3.9 GHz, (Quad-Core) |
| Processor Main Features | Intel Virtualization Technology, Intel AES New Instructions |
| Cache Memory | 6 MB |
| Cache Per Processor | 6 MB |
| RAM | 8 GB DDR3 SDRAM |
| Storage Controller | SATA (SATA 6Gb/s) |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Card Reader | Yes |
| Graphics Controller | AMD Radeon R540X |
| Video Memory | 2 GB GDDR5 SDRAM |
| Audio Output | 7.1 channel surround |
| Networking | 1GbE, 802.11a, 802.11b/g/n, Wi-Fi 5, Bluetooth 5.0 |
| Power | DC 19 V |
| OS Provided | No operating system |
| Dimensions (WxDxH) | 4.6 in x 4.4 in x 2 in |
| Manufacturer Warranty | Limited warranty - 3 years |
| General | |
| Type | PC barebone |
| Product Form Factor | Mini PC |
| Sensors | Infrared (IR) sensor |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x internal 2.5" |
| Slots | 1 (total) / 1 (free) x M.2 Card - 2280 |
| Interfaces | 3 x USB 3.1 Gen 2 - Type A (1 front, 2 rear) (one of them is charging) ¦ 1 x USB-C 3.1 Gen 2 ¦ 1 x HDMI ¦ 1 x Mini DisplayPort ¦ 1 x LAN (Gigabit Ethernet) - RJ-45 ¦ 1 x headphones/microphone - mini-jack |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 3 years |
| Miscellaneous | |
| Theft/Intrusion Protection | Security lock slot (cable lock sold separately) |
| Security Slot Type | Kensington security slot |
| Compliant Standards | ACPI, ICES-003, EN55024, FCC Part 15 B, FCC Part 15 C, AS/NZS 4268, FCC Part 15 E, BSMI CNS 13438, CISPR, REACH, EN 62311, EN 300.440, China RoHS, EN 300 328, EN 301 489-1, KN32, KN35, AS/NZS 2772.2, EN 301 893, IEC/EN/UL 60950-1, EN 55032, EN 301 489-3, EU RoHS, IEC/EN/UL 62368-1, EN 301 489-17, ARPANSA, Taiwan BSMI RoHS, AS/NZS CISPR 32, VCCI 32 |
| RAM | |
| Installed Size | 8 GB |
| Technology | DDR3 SDRAM |
| Rated Memory Speed | 1866 MHz |
| Features | Dual channel memory architecture, Load-Reduced DIMM (LRDIMM) |
| Networking | |
| Ethernet Controller | Intel I219-V |
| Wireless LAN Supported | Yes |
| Wireless NIC | Intel Wireless-AC 9560 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet, IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Compliant Standards | IEEE 802.11b, IEEE 802.11a, IEEE 802.11g, IEEE 802.11n, IEEE 802.11ac, Bluetooth 5.0 |
| Power | |
| Device Type | Power adapter |
| Voltage Required | DC 19 V |
| Power Provided | 90 Watt |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Storage Controller | |
| Type | 2 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| RAID Level | RAID 0, RAID 1 |
| Cache Memory | |
| Installed Size | 6 MB |
| Cache Per Processor | 6 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | AMD Radeon R540X |
| Video Memory | 2 GB GDDR5 SDRAM |
| Video Interfaces | HDMI, DisplayPort |
| Audio Output | |
| Sound Output Mode | 7.1 channel surround |
| Compliant Standards | High Definition Audio |
| Operating System / Software | |
| OS Provided | No operating system |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 4.6 in |
| Depth | 4.4 in |
| Height | 2 in |
| Card Reader | |
| Type | Card reader |
| Supported Flash Memory Cards | SDXC UHS-I Memory Card |
| Processor / Chipset | |
| CPU | Intel Core i5 (8th Gen) 8265U |
| Clock Speed | 1.6 GHz |
| Max Turbo Speed | 3.9 GHz |
| Number of Cores | Quad-Core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Not upgradable |
| Processor Main Features | Intel Virtualization Technology, Intel AES New Instructions |
