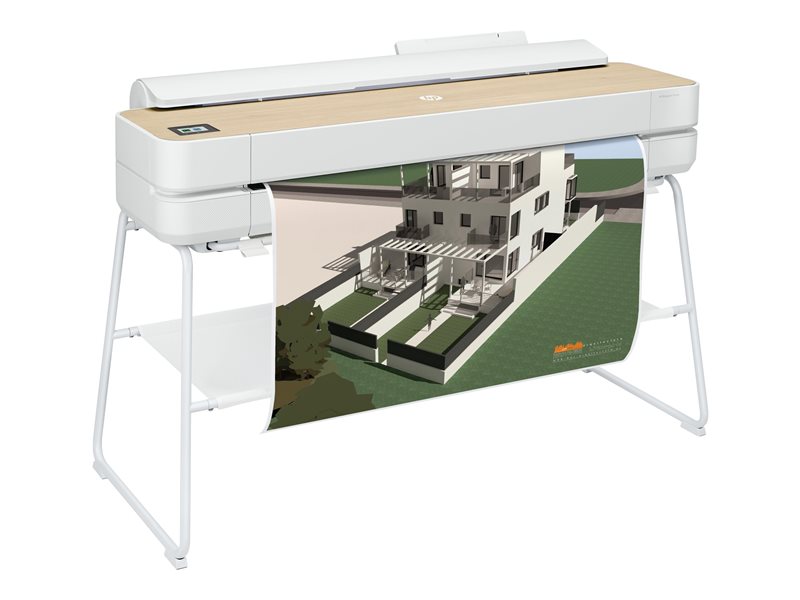

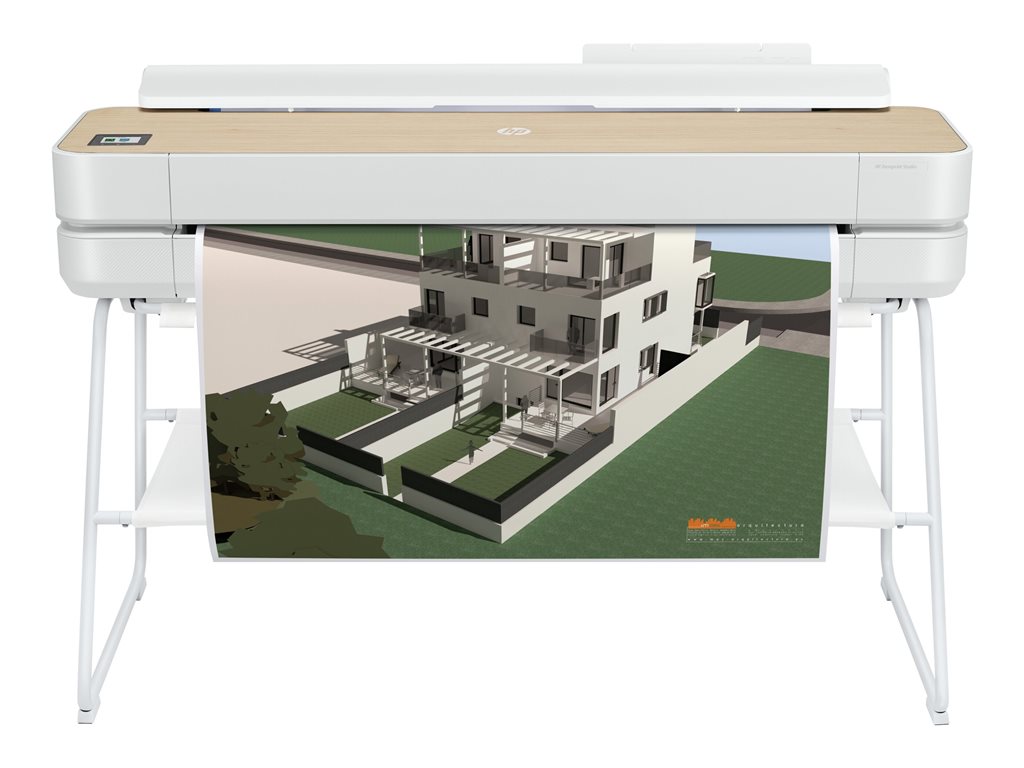

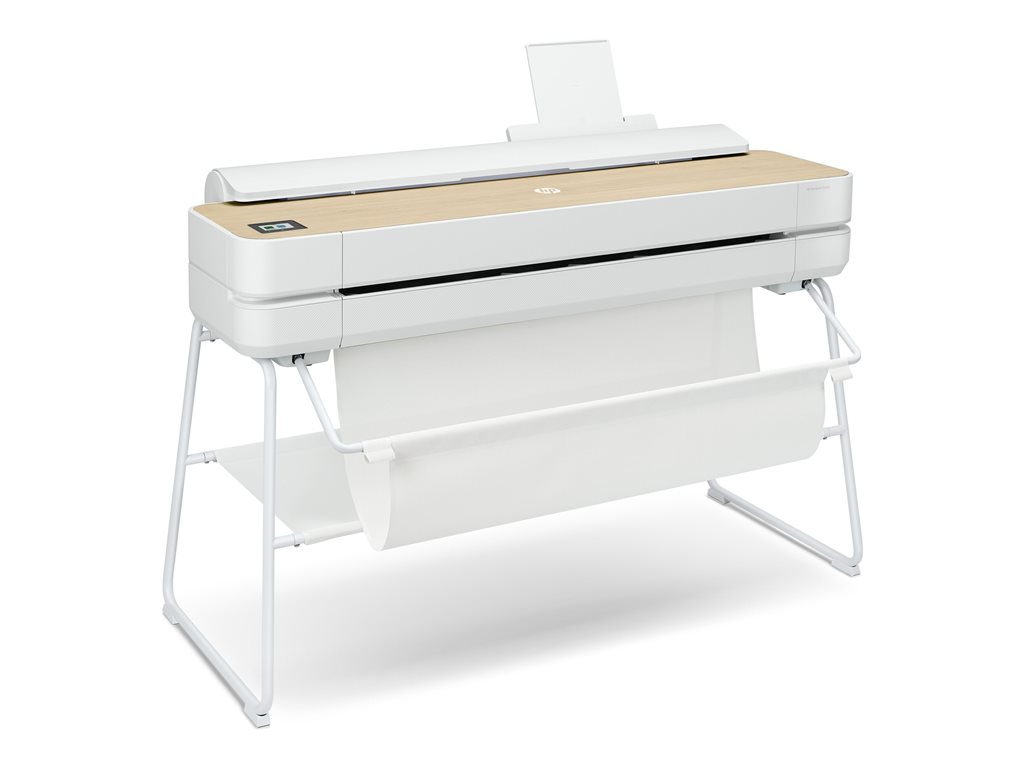

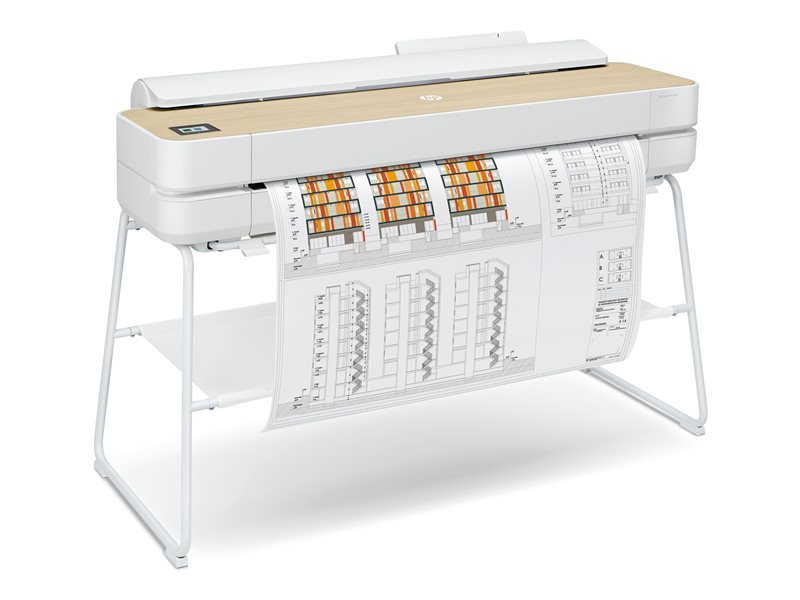

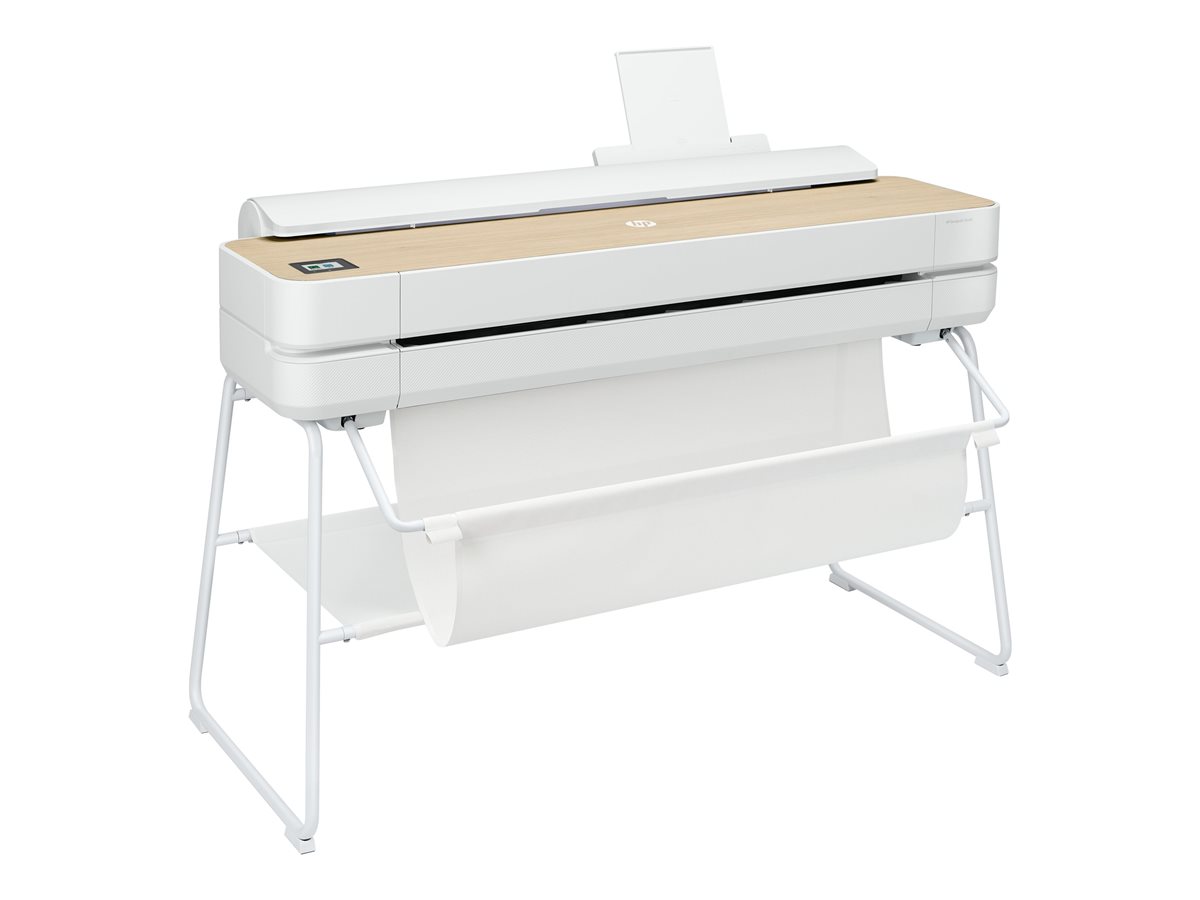

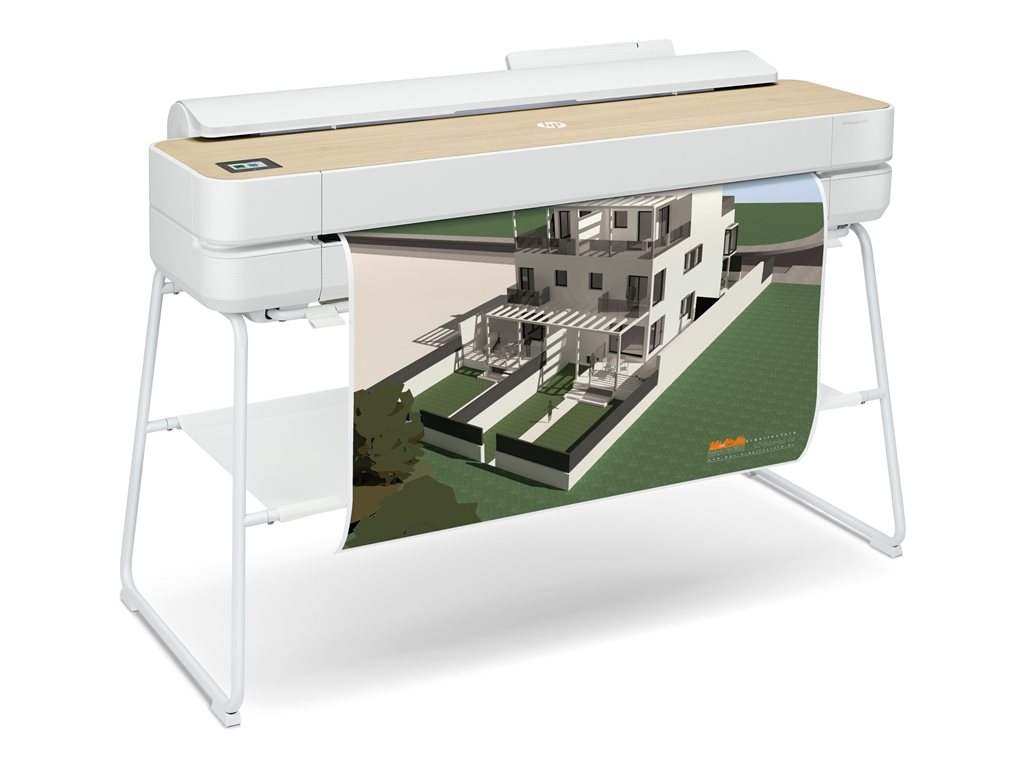

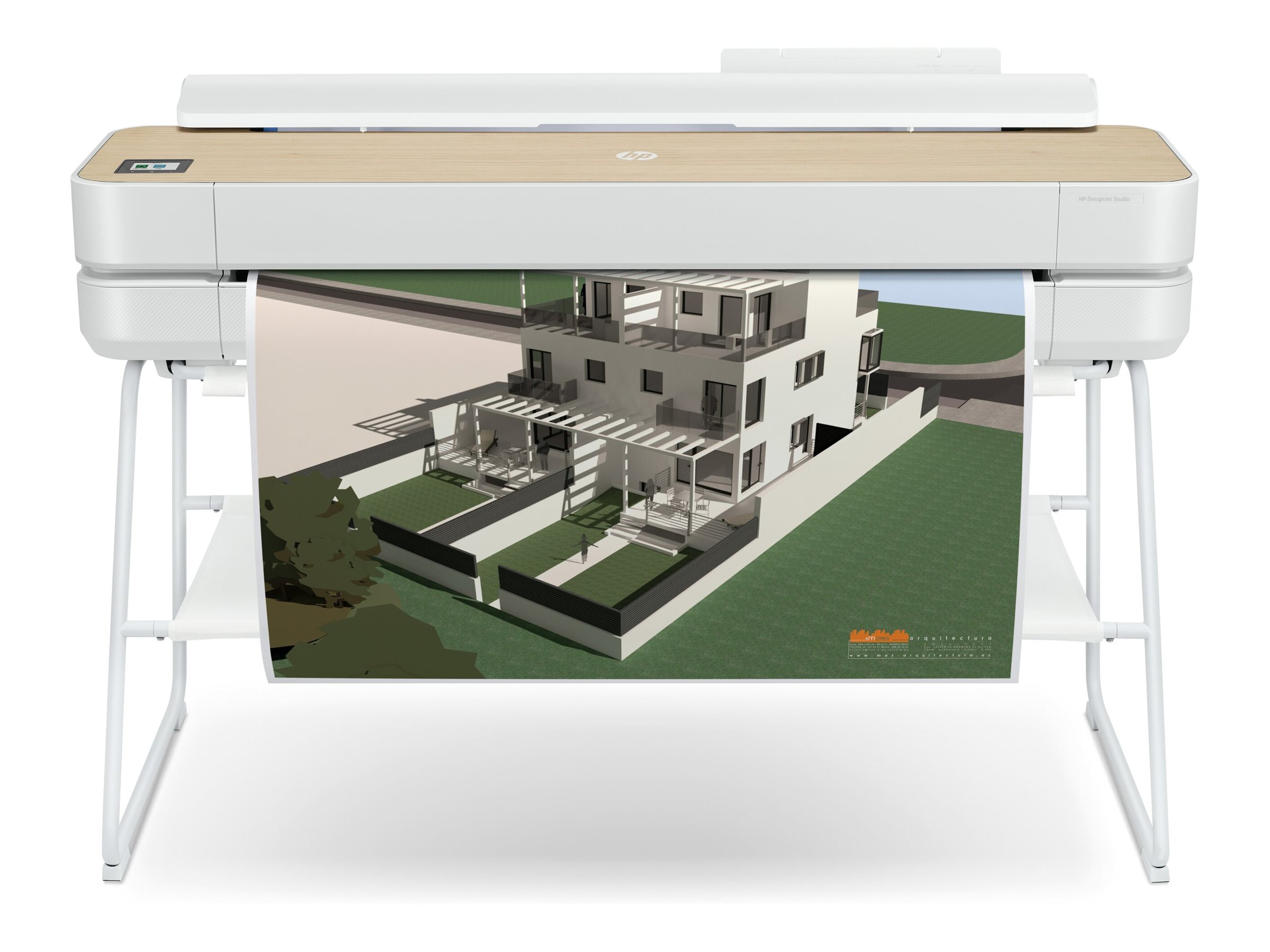

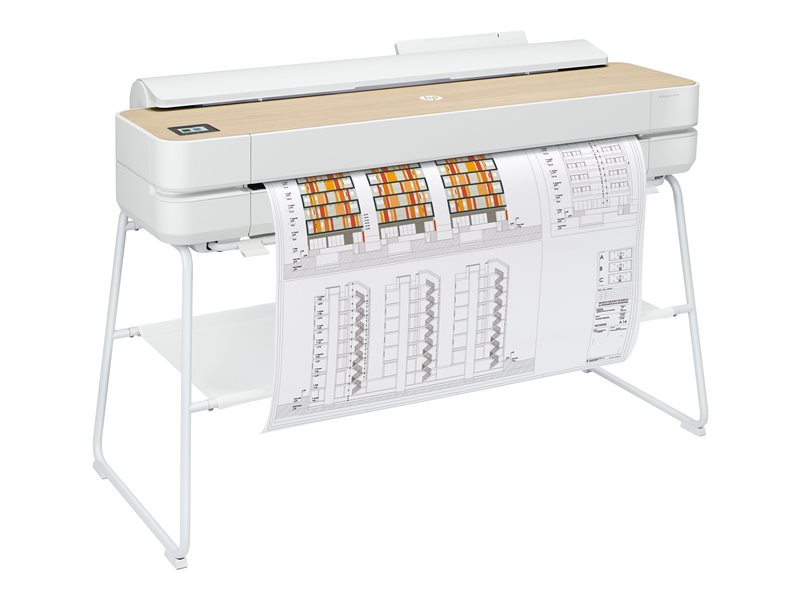

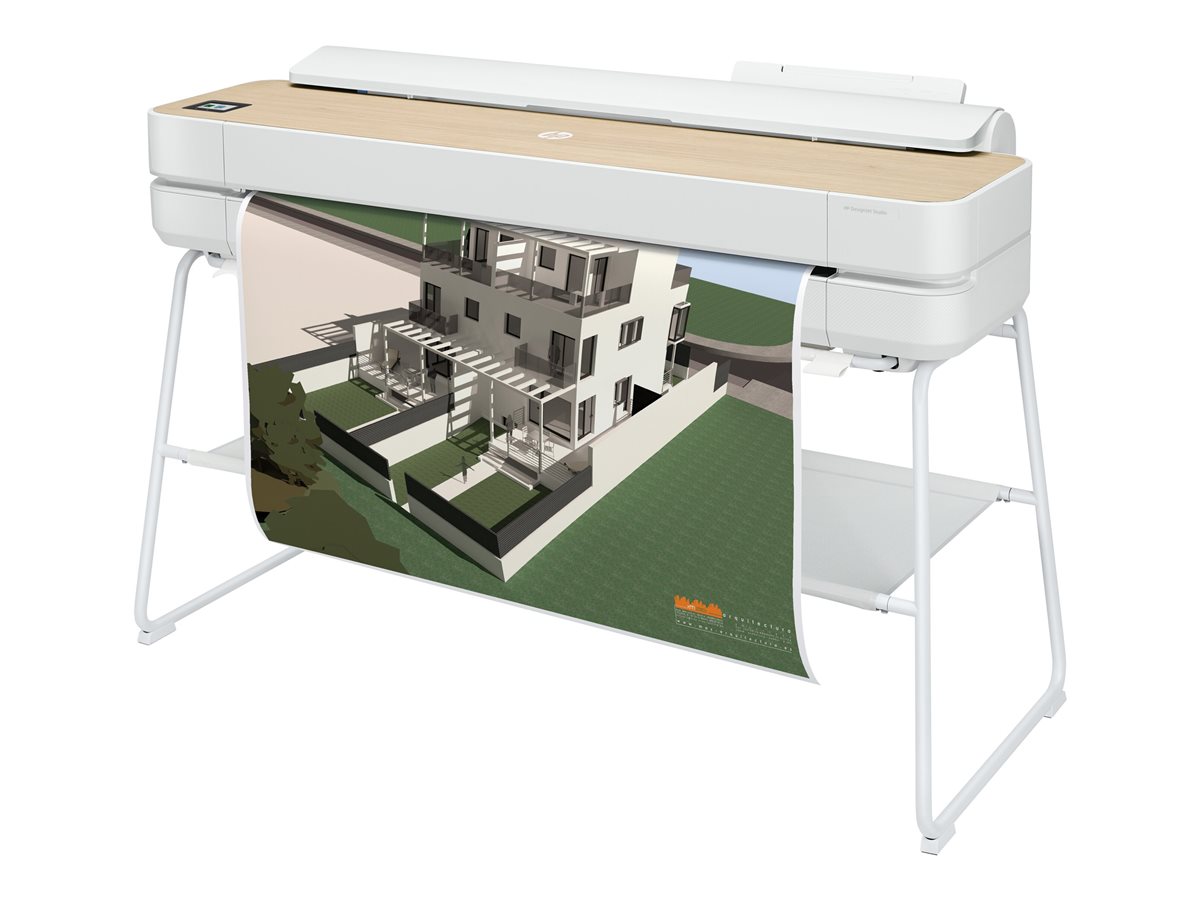

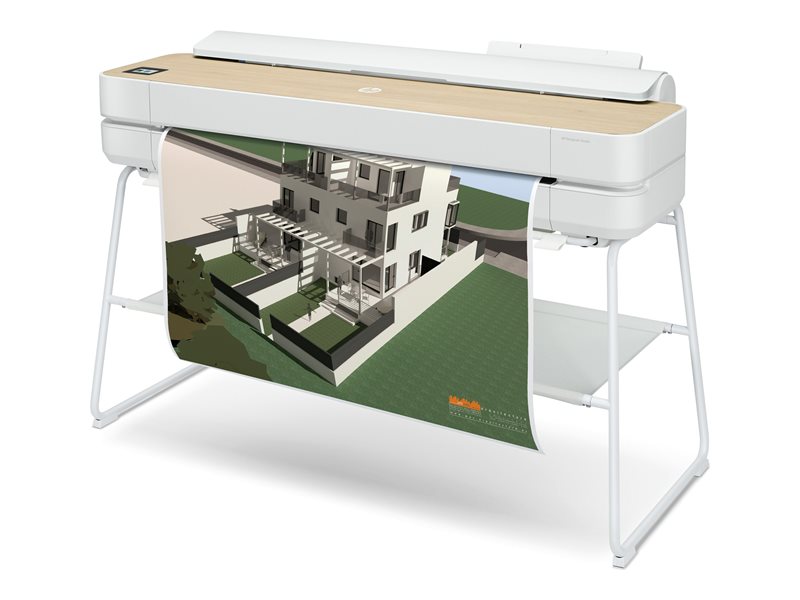

36" large-format printer - color - ink-jet - A0, ANSI D, - 2400 x 1200 dpi - up to 0.4 min/page (mono) / up to 0.4 min/page (color) - USB 2.0, LAN, Wi-Fi(n) - cutter
Main Specifications | |
---|---|
Product Description | HP DesignJet Studio - large-format printer - color - ink-jet |
Printer Type | 36" large-format printer - ink-jet - color |
Weight | 91.93 lbs |
Localization | English, French, Portuguese, Spanish / Canada, Latin America, United States |
Inkjet Technology | HP Thermal Inkjet |
Ink Palette Supported (Colors) | 4-ink - cyan, magenta, yellow, pigment black |
Max Media Size | A0 (33.1 in x 46.8 in), ANSI D (22 in x 34 in), Roll (36 in x 150 ft) |
Min Media Size (Custom) | 8.25 in x 11 in |
Max Media Size (Custom) | 36 in x 150 ft |
Print Speed | Up to 0.4 min/page - black draft - ANSI D (22 in x 34 in) ¦ Up to 0.4 min/page - color draft - ANSI D (22 in x 34 in) ¦ Up to 0.4 min/page - black draft - A1 (23.4 in x 33.1 in) ¦ Up to 0.4 min/page - color draft - A1 (23.4 in x 33.1 in) |
Max Resolution (B&W) | 2400 x 1200 dpi |
Max Resolution (Color) | 2400 x 1200 dpi |
Cutter | Yes |
Interface | USB 2.0, LAN, Wi-Fi(n) |
RAM Installed (Max) | 1 GB (1 GB) |
Language Simulation | HP RTL, CALS G4, HP GL/2, URF, JPEG |
Media Type | Plain paper, photo paper, bond paper, film, glossy paper, semi-gloss paper, technical paper, self-adhesive paper |
Networking | Print server |
Printer Features | Wireless Direct Print, print from mobile device, 6.2 kg max roll weight |
Power | AC 100-240 V |
Manufacturer Warranty | 3-year warranty |
Dimensions (WxDxH) | 51.9 in x 21.9 in x 36.7 in |
General | |
Printer Type | 36" large-format printer - ink-jet - color |
Localization | English, French, Portuguese, Spanish / Canada, Latin America, United States |
Expansion / Connectivity | |
Connections | 1 x USB 2.0 - 4 pin USB Type B ¦ 1 x LAN - RJ-45 |
Manufacturer Warranty | |
Service & Support | Limited warranty - 3 years |
Miscellaneous | |
Included Accessories | Spindle, stand, setup poster, roll cover |
Compliant Standards | FCC Class B certified, CSA, CCC, PSB, IRAM, EN 60950-1, ICES Class B, CCC Class B, WEEE, REACH, KCC Class B, FSC, ERP, EMC Class B, VCCI Class B, EAC, BIS, ACMA, UA, EN 62368-1, EU RoHS, RSM, EAEU RoHS, EU Low Voltage Directive, NYCE |
Printer | |
Inkjet Technology | HP Thermal Inkjet |
Ink Palette Supported (Colors) | 4-ink - cyan, magenta, yellow, pigment black |
Nozzle Configuration | 1376 nozzles |
Minimum Ink Droplet Size | 12 pl (black), 5.5 pl (color) |
Ink Cartridge Configuration | 4 cartridges (1 each: cyan, magenta, yellow, pigment black) |
Print Speed | Up to 0.4 min/page - black draft - ANSI D (22 in x 34 in) ¦ Up to 0.4 min/page - color draft - ANSI D (22 in x 34 in) ¦ Up to 0.4 min/page - black draft - A1 (23.4 in x 33.1 in) ¦ Up to 0.4 min/page - color draft - A1 (23.4 in x 33.1 in) |
Connectivity Technology | Wireless |
Interface | USB 2.0, LAN, Wi-Fi(n) |
Max Resolution (B&W) | 2400 x 1200 dpi |
Max Resolution (Color) | 2400 x 1200 dpi |
Language Simulation | HP RTL, CALS G4, HP GL/2, URF, JPEG |
Cutter | Yes |
Printer Features | Wireless Direct Print, print from mobile device, 6.2 kg max roll weight |
RAM | |
RAM Installed (Max) | 1 GB / 1 GB (max) |
Media Handling | |
Media Type | Plain paper, photo paper, bond paper, film, glossy paper, semi-gloss paper, technical paper, self-adhesive paper |
Max Media Size | A0 (33.1 in x 46.8 in), ANSI D (22 in x 34 in), Roll (36 in x 150 ft) |
Min Media Size (Custom) | 8.25 in x 11 in |
Max Media Size (Custom) | 36 in x 150 ft |
Media Sizes | Letter A Size (8.5 in x 11 in), A4 (8.25 in x 11.7 in), A3 (11.7 in x 16.5 in), A2 (16.5 in x 23.4 in), A1 (23.4 in x 33.1 in), A0 (33.1 in x 46.8 in), Ledger B Size (11 in x 17 in), ANSI C (17 in x 22 in), ANSI E (34 in x 44 in), ANSI D (22 in x 34 in), Roll (36 in x 150 ft) |
Media Thickness Range | Up to 0.012 in |
Media Weight | 60 g/m² - 280 g/m² |
Networking | |
Networking | Print server |
Power | |
Power Device | Power supply - internal |
Voltage Required | AC 100-240 V |
Frequency Required | 50/60 Hz |
Power Consumption Operational | 35 Watt |
Power Consumption Stand by | 0.2 Watt |
Power Consumption Sleep | 2.1 Watt |
Software / System Requirements | |
Software Included | HP Support Assistant, HP Click, HP DesignJet Utility, HP Print Preview, HP Smart App, HP Easy Start |
Environmental Parameters | |
Min Operating Temperature | 41 °F |
Max Operating Temperature | 104 °F |
Humidity Range Operating | 20 - 80% RH |
Sound Emission (Idle) | 16 dBA |
Sound Emission (Operating) | 42 dBA |
Dimensions & Weight | |
Width | 51.9 in |
Depth | 21.9 in |
Height | 36.7 in |
Weight | 91.93 lbs |
Dimensions & Weight (Shipping) | |
Width (Shipping) | 57.9 in |
Depth (Shipping) | 22.6 in |
Height (Shipping) | 25.4 in |
Weight (Shipping) | 136.69 lbs |
Environmental Standards | |
ENERGY STAR | Yes |
