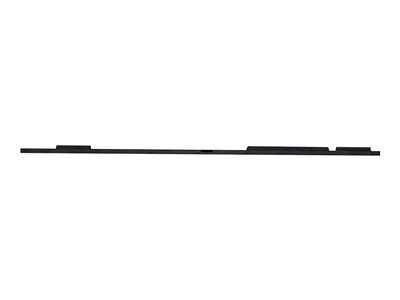

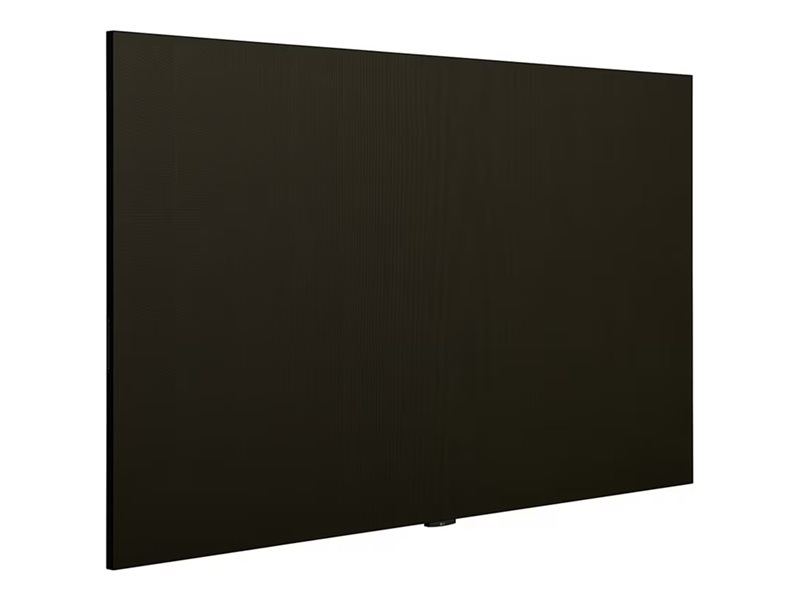

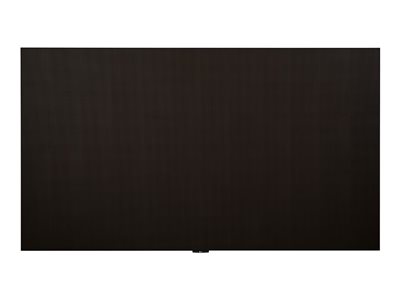

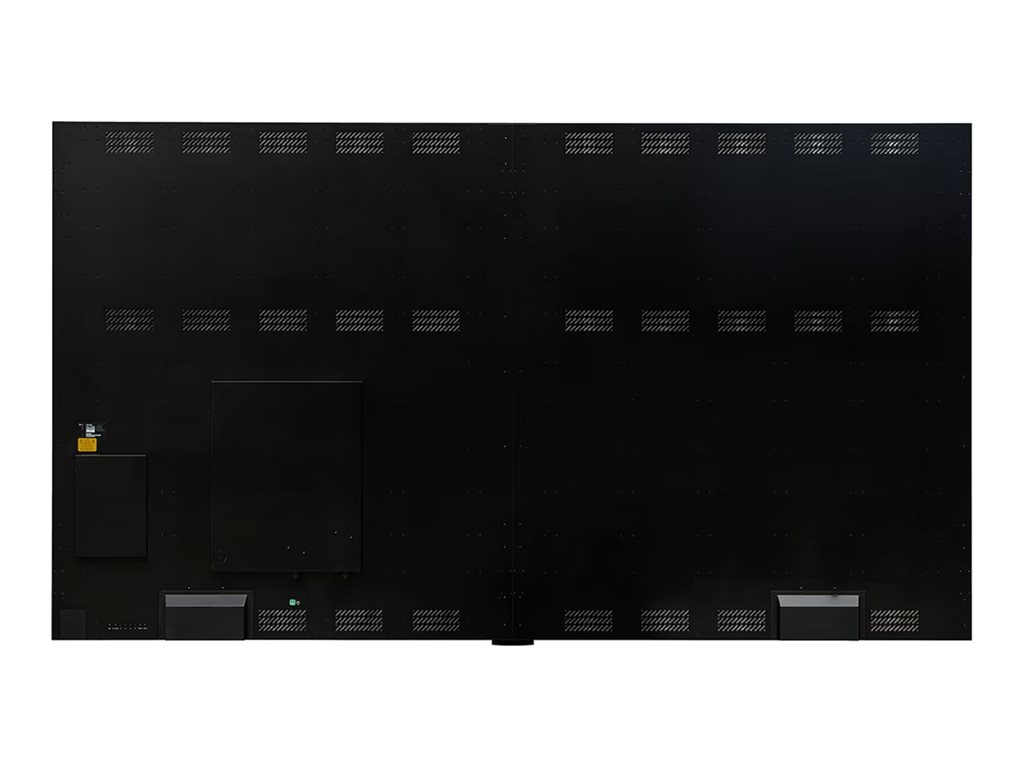

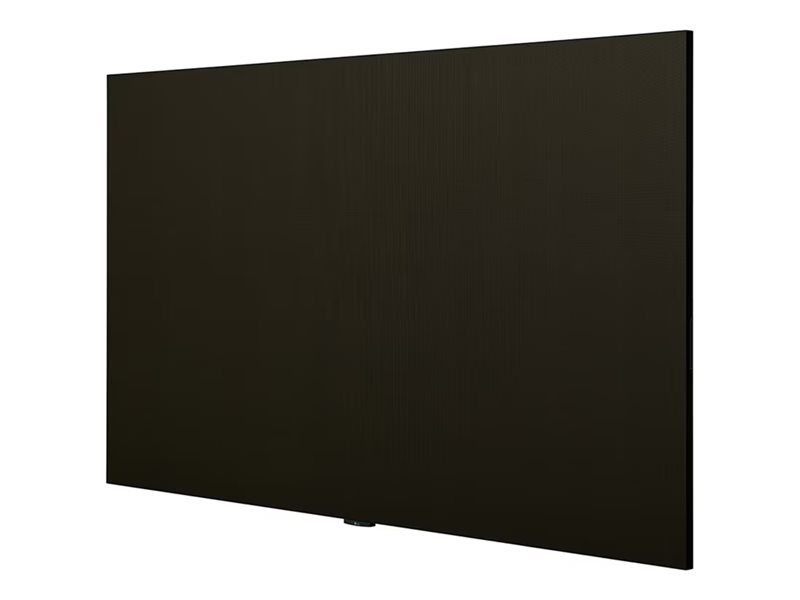

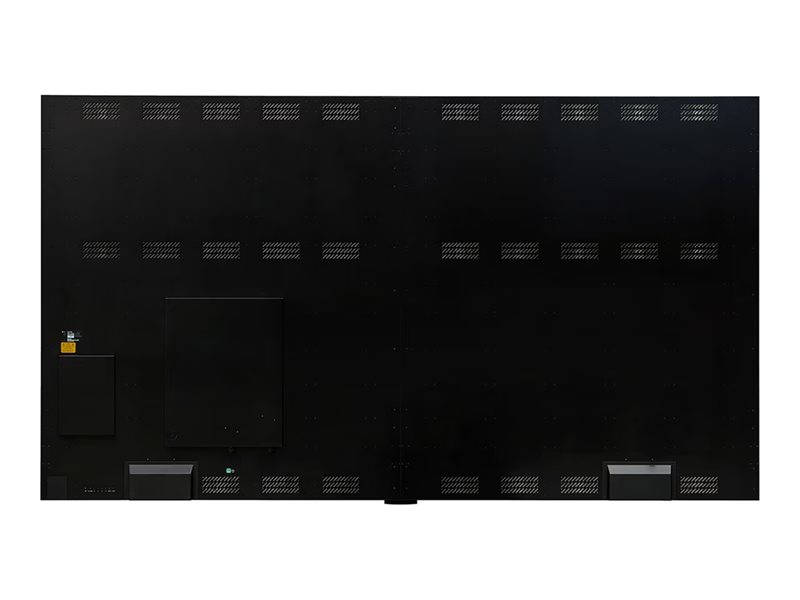

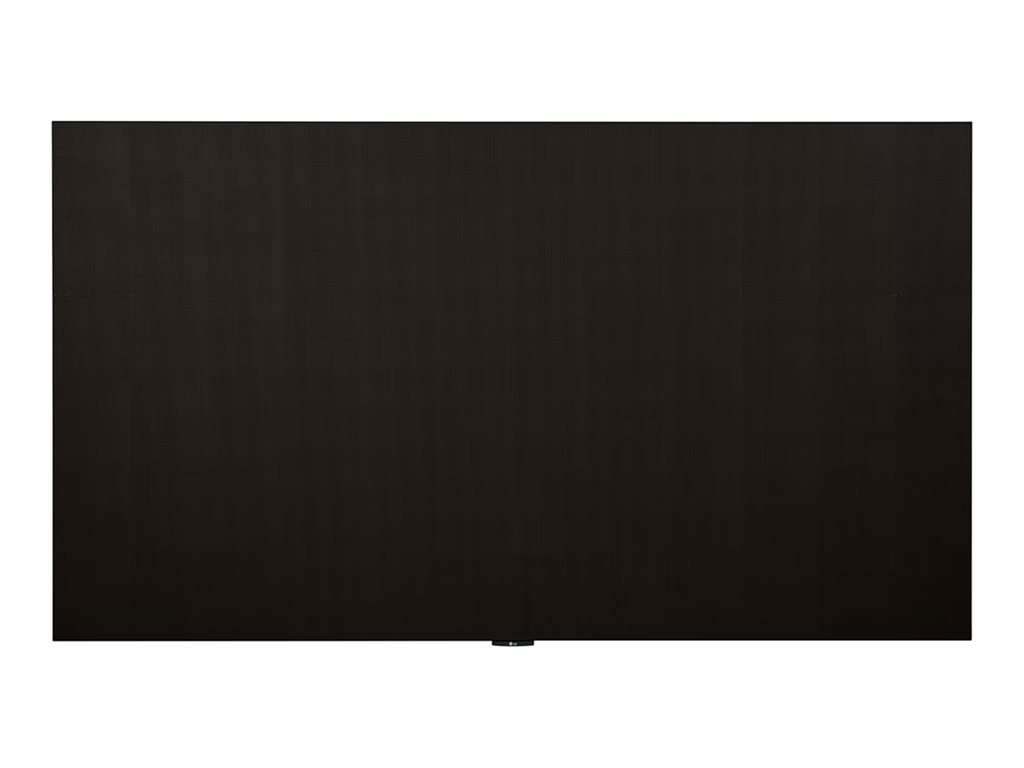

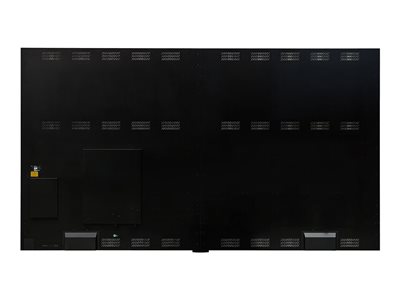

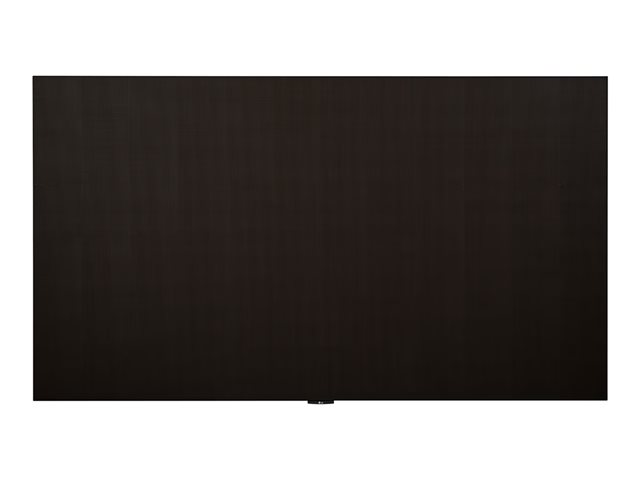

All-in-One LAEC Series LED video wall - Direct View LED - digital signage - webOS - 1920 x 1080 163" - 144 x - Single SMD - HDR
| Main Specifications | |
|---|---|
| Product Description | LG LAEC018-GN2 All-in-One LAEC Series LED video wall - Direct View LED - for digital signage |
| Product Type | LED video wall - Direct View LED |
| Diagonal Size | 163" |
| Commercial Use | Yes - digital signage |
| Number of Screens | 144 |
| Video Wall Configuration | 12x12 |
| Platform | webOS |
| Video Wall Resolution | 1920 x 1080 |
| HDR Format | HDR10 |
| HDR Technology | HDR10 Pro |
| Frame Rate & Enhancement Technology | 3000 Hz Refresh Rate |
| Video Interface | HDMI |
| HDMI Ports Qty | 3 ports |
| Connectivity | LAN |
| PC Interface | DisplayPort |
| TV Tuner | No tuner |
| Commercial Features | Crestron Connected Certified, LG ConnectedCare, LG One:Quick Share compatible, AV Control Systems compatible |
| Speaker System | 2 speakers |
| Video Wall Display Unit | Single SMD - die-casting aluminum |
| USB | Yes |
| Voltage | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 880 Watt |
| Dimensions (WxDxH) - display units assembly | 141.9 in x 1.8 in x 79.9 in |
| Weight | 418.87 lbs |
| General | |
| Product Type | LED video wall - Direct View LED |
| Power Consumption (Max) | 2200 Watt |
| Power Consumption Operational | 880 Watt |
| Commercial Use | Yes - digital signage |
| Series | All-in-One LAEC Series |
| Platform | webOS |
| Operating System | webOS |
| HDR Capable | Yes |
| HDR Format | HDR10 |
| HDR Technology | HDR10 Pro |
| Total Area | 78.5 sq.ft |
| TV Tuner | No tuner |
| TV Tuner Presence | No |
| Video Interface | HDMI |
| HDMI Ports Qty | 3 ports |
| PC Interface | DisplayPort |
| Dimensions | Display units assembly |
| Width | 141.9 in |
| Depth | 1.8 in |
| Height | 79.9 in |
| Weight | 418.87 lbs |
| Miscellaneous | |
| Compliant Standards | CB, FCC, RoHS, ETL, REACH, IP20, IP30 |
| Power | |
| Power Device | Power supply |
| Input Voltage | AC 100-240 V (50/60 Hz) |
| Video Wall Power Consumption (Max) | 302 W/m² |
| Heat Generation Details | Cabinet - max - 1030 BTU/m² ¦ Cabinet - max - 7506 BTU/h ¦ Cabinet - typical - 3004 BTU/h |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 80% RH |
| Display | |
| Frame Rate & Enhancement Technology | 3000 Hz Refresh Rate |
| Color Temperature | 3200 - 9300K |
| Image Contrast Ratio | 3000:1 |
| Brightness | 500 cd/m² |
| Viewing Angle | 160° |
| Viewing Angle (Vertical) | 160° |
| Commercial Features | Crestron Connected Certified, LG ConnectedCare, LG One:Quick Share compatible, AV Control Systems compatible |
| Additional Features | 16-bit support, Embedded System Controller, 98% brightness uniformity |
| Connections | |
| Connector Type | 3 x HDMI ¦ DisplayPort ¦ USB 2.0 ¦ LAN ¦ RS-232C input ¦ RS-232C output ¦ Infrared input ¦ Digital audio output (optical) |
| Remote Control | |
| Features | Magic remote |
| Audio System | |
| Speaker System | 2 speakers |
| Output Power / Total | 18 Watt |
| Speakers | 2 x speaker - 9 Watt |
| Network & Internet Multimedia | |
| Connectivity | LAN |
| LAN Protocol | Ethernet |
| Connect & Share | Screen Share |
| Dimensions & Weight Details | |
| Dimensions & Weight Details | Display units assembly - 141.9 in x 1.8 in x 79.9 in x 418.9 lbs ¦ Display unit - 11.8 in 6.6 in |
| Media Player | |
| USB Port | Yes |
| USB Ports Qty | 1 |
| Video Wall Display Unit | |
| Pixel Pitch | 1.88 mm |
| Pixel Density | 284444 pixels/m² |
| LED Type | Single SMD |
| LED Lifetime | 100000 hours |
| Maintenance | Front |
| Cabinet Frame Material | Die-casting aluminum |
| Video Wall | |
| Resolution | 1920 x 1080 |
| Diagonal Size | 163" |
| Number of Screens | 144 |
| Configuration | 12x12 |
