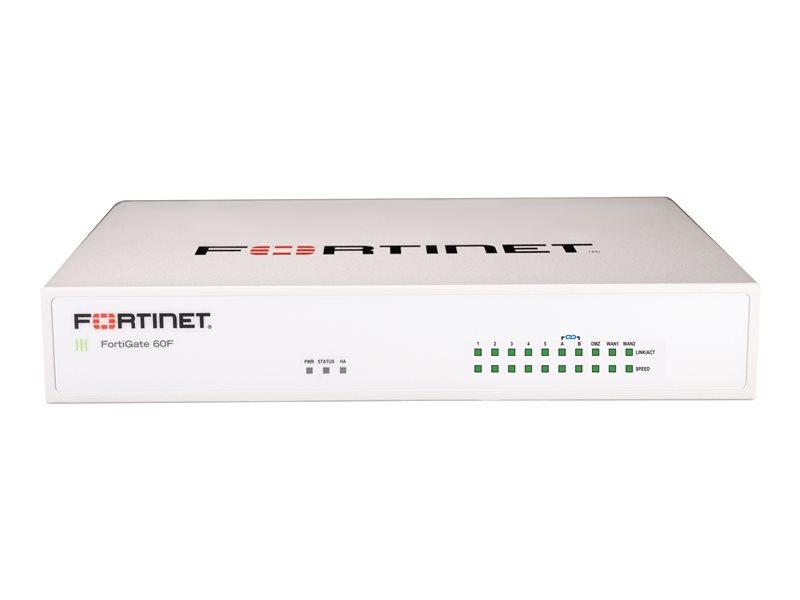

Security appliance - with 3 years FortiCare Premium Support + 3 years FortiGuard Enterprise Protection - 1GbE - desktop
| Main Specifications | |
|---|---|
| Product Description | Fortinet FortiGate 61F - security appliance - with 3 years FortiCare Premium Support + 3 years FortiGuard Enterprise Protection |
| Device Type | Security appliance |
| Bundled Services | 3 years FortiCare Premium Support + 3 years FortiGuard Enterprise Protection |
| Form Factor | Desktop |
| Processor | 1 x Fortinet FortiASIC SOC4 |
| Hard Drive | 128 GB x 1 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Performance | IPS throughput (enterprise traffic mix): 1.4 Gbps ¦ NGFW throughput (enterprise traffic mix): 1 Gbps ¦ Threat protection throughput (enterprise traffic mix): 700 Mbps ¦ Firewall throughput (1518-byte UDP): 10 Gbps ¦ Firewall throughput (512-byte UDP): 10 Gbps ¦ Firewall throughput (64-byte UDP): 6 Gbps ¦ Firewall latency (64-byte UDP): 3.3 µs ¦ Firewall throughput: 9 Mpps ¦ VPN throughput (512-bit IPSec): 6.5 Gbps ¦ VPN throughput (SSL): 900 Mbps ¦ SSL inspection throughput: 630 Mbps ¦ Application control throughput: 1.8 Gbps ¦ CAPWAP throughput: 8 Gbps |
| Capacity | Concurrent TCP sessions: 700000 ¦ New TCP sessions per second: 35000 ¦ Firewall policies: 5000 ¦ Gateway to gateway IPSec VPN Tunnels: 200 ¦ Client to gateway IPSec VPN tunnels: 500 ¦ Concurrent SSL VPN users: 200 ¦ SSL inspection CPS: 400 ¦ SSL inspection concurrent sessions: 55000 ¦ Virtual domains: 10 ¦ Maximum virtual domains: 10 ¦ Number of FortiSwitches: 24 ¦ Number of FortiAP devices: 64 ¦ Number of FortiAP devices (tunnel mode): 32 ¦ Number of FortiToken devices: 500 |
| Power | AC 100-240 V (50/60 Hz) |
| Dimensions (WxDxH) | 8.5 in x 6.3 in x 1.5 in |
| Weight | 2.23 lbs |
| General | |
| Device Type | Security appliance |
| Bundled Services | 3 years FortiCare Premium Support + 3 years FortiGuard Enterprise Protection |
| Width | 8.5 in |
| Depth | 6.3 in |
| Height | 1.5 in |
| Weight | 2.23 lbs |
| Expansion / Connectivity | |
| Interfaces | 1 x USB 3.0 ¦ 1 x console - RJ-45 ¦ 2 x 1000Base-T - RJ-45 (WAN) ¦ 1 x 1000Base-T - RJ-45 (DMZ) ¦ 2 x 1000Base-T (FortiLink) - RJ-45 ¦ 5 x 1000Base-T - RJ-45 |
| Miscellaneous | |
| Compliant Standards | FCC, ICES, RCM, VCCI, BSMI, UL, cUL, CB, USGv6 |
| Networking | |
| Form Factor | Desktop |
| Connectivity Technology | Wired |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Network / Transport Protocol | IPSec, TCP/IP, UDP/IP, HTTP, HTTPs |
| Remote Management Protocol | HTTP, HTTPS |
| Performance | IPS throughput (enterprise traffic mix): 1.4 Gbps ¦ NGFW throughput (enterprise traffic mix): 1 Gbps ¦ Threat protection throughput (enterprise traffic mix): 700 Mbps ¦ Firewall throughput (1518-byte UDP): 10 Gbps ¦ Firewall throughput (512-byte UDP): 10 Gbps ¦ Firewall throughput (64-byte UDP): 6 Gbps ¦ Firewall latency (64-byte UDP): 3.3 µs ¦ Firewall throughput: 9 Mpps ¦ VPN throughput (512-bit IPSec): 6.5 Gbps ¦ VPN throughput (SSL): 900 Mbps ¦ SSL inspection throughput: 630 Mbps ¦ Application control throughput: 1.8 Gbps ¦ CAPWAP throughput: 8 Gbps |
| Capacity | Concurrent TCP sessions: 700000 ¦ New TCP sessions per second: 35000 ¦ Firewall policies: 5000 ¦ Gateway to gateway IPSec VPN Tunnels: 200 ¦ Client to gateway IPSec VPN tunnels: 500 ¦ Concurrent SSL VPN users: 200 ¦ SSL inspection CPS: 400 ¦ SSL inspection concurrent sessions: 55000 ¦ Virtual domains: 10 ¦ Maximum virtual domains: 10 ¦ Number of FortiSwitches: 24 ¦ Number of FortiAP devices: 64 ¦ Number of FortiAP devices (tunnel mode): 32 ¦ Number of FortiToken devices: 500 |
| Status Indicators | Power, status, HA, DMZ, WAN, link/activity/speed |
| Features | SD-WAN support, SSL inspection, 3G/4G USB Dongle Support, fanless |
| Encryption Algorithm | TLS 1.3, SSL, 256-bit AES, 256-bit SHA |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Consumption Operational | 17.2 Watt |
| Software / System Requirements | |
| OS Provided | FortiOS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Processor / Memory / Storage | |
| Processors Installed | 1 x Fortinet FortiASIC SOC4 |
| Hard Drive | SSD 128 GB x 1 |
