Security appliance - with 5 years FortiCare Premium Support + 5 years FortiGuard Enterprise Protection - 25GbE, 40GbE, 100GbE - front to back airflow - 3U - rack-mountable
| Main Specifications | |
|---|---|

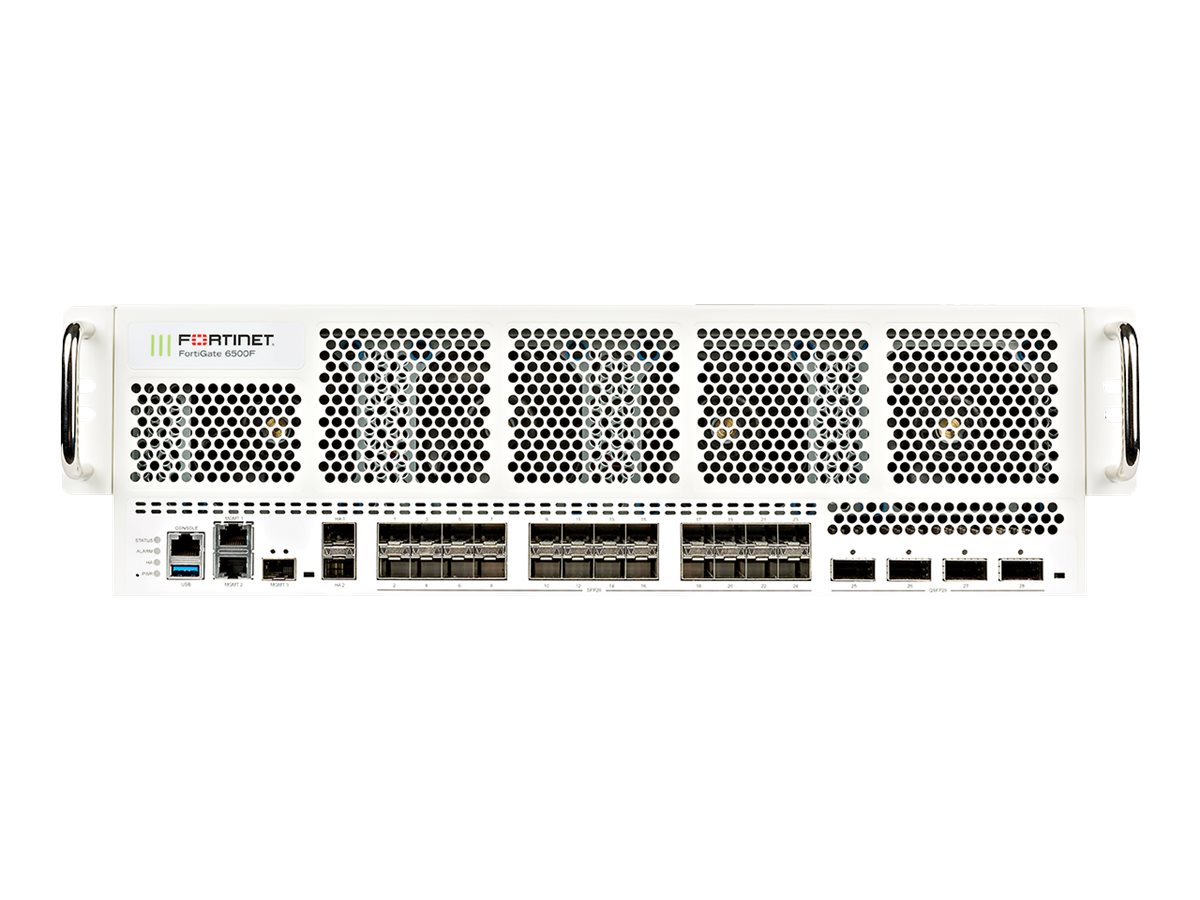

| Product Description | Fortinet FortiGate 6501F-DC - security appliance - with 5 years FortiCare Premium Support + 5 years FortiGuard Enterprise Protection |
| Device Type | Security appliance |
| Bundled Services | 5 years FortiCare Premium Support + 5 years FortiGuard Enterprise Protection |
| Form Factor | Front to back airflow rack-mountable - 3U |
| Processor | Fortinet FortiASIC CP9/DP3/NP6 |
| Hard Drive | 1 TB x 2 - PCI Express (NVMe) |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Performance | IPS throughput (enterprise traffic mix): 170 Gbps ¦ NGFW throughput (enterprise traffic mix): 150 Gbps ¦ Threat protection throughput (enterprise traffic mix): 100 Gbps ¦ Firewall throughput (1518-byte UDP): 239 Gbps ¦ Firewall throughput (512-byte UDP): 238 Gbps ¦ Firewall throughput (64-byte UDP): 135 Gbps ¦ Firewall latency (64-byte UDP): 4.8 µs ¦ Firewall throughput: 202.5 Mpps ¦ VPN throughput (512-bit IPSec): 160 Gbps ¦ VPN throughput (SSL): 9 Gbps ¦ SSL inspection throughput: 110 Gbps ¦ Application control throughput: 220 Gbps |
| Capacity | Concurrent TCP sessions: 200000000 ¦ New TCP sessions per second: 3000000 ¦ Firewall policies: 200000 ¦ Gateway to gateway IPSec VPN Tunnels: 16000 ¦ Client to gateway IPSec VPN tunnels: 90000 ¦ Concurrent SSL VPN users: 30000 ¦ SSL inspection CPS: 50000 ¦ SSL inspection concurrent sessions: 18000000 ¦ Virtual domains: 10 ¦ Maximum virtual domains: 500 ¦ Number of FortiSwitches: 256 ¦ Number of FortiToken devices: 20000 |
| Included Accessories | 2 x SR 10Gbps SFP+ transceivers |
| Power | DC -48 - -60 V |
| Power Redundancy | Yes |
| Dimensions (WxDxH) | 17.2 in x 27.3 in x 5.2 in |
| Weight | 79.59 lbs |
| General | |
| Device Type | Security appliance |
| Bundled Services | 5 years FortiCare Premium Support + 5 years FortiGuard Enterprise Protection |
| Height (Rack Units) | 3U |
| Width | 17.2 in |
| Depth | 27.3 in |
| Height | 5.2 in |
| Weight | 79.59 lbs |
| Expansion / Connectivity | |
| Interfaces | 4 x 40Gb Ethernet/100Gb Ethernet - QSFP+/QSFP28 ¦ 24 x 1 Gigabit Ethernet/10Gb Ethernet/25Gb Ethernet - SFP/SFP+/SFP28 ¦ 2 x 10Gb Ethernet (HA) - SFP+ ¦ 1 x 10Gb Ethernet (management) - SFP+ ¦ 2 x 1000Base-T (management) - RJ-45 ¦ 1 x USB 3.0 - Type A ¦ 1 x console - RJ-45 |
| Miscellaneous | |
| Included Accessories | 2 x SR 10Gbps SFP+ transceivers |
| Compliant Standards | FCC Part 15 A, RCM, VCCI, UL, cUL, CB, USGv6 |
| Networking | |
| Form Factor | Rack-mountable |
| Airflow Direction | Front to back airflow |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet, 25 Gigabit Ethernet, 40 Gigabit Ethernet, 100 Gigabit Ethernet |
| Network / Transport Protocol | IPv4, IPv6, SCTP, HTTPs, HTTP, IPSec, TCP/IP, UDP/IP |
| Remote Management Protocol | HTTPS, HTTP |
| Performance | IPS throughput (enterprise traffic mix): 170 Gbps ¦ NGFW throughput (enterprise traffic mix): 150 Gbps ¦ Threat protection throughput (enterprise traffic mix): 100 Gbps ¦ Firewall throughput (1518-byte UDP): 239 Gbps ¦ Firewall throughput (512-byte UDP): 238 Gbps ¦ Firewall throughput (64-byte UDP): 135 Gbps ¦ Firewall latency (64-byte UDP): 4.8 µs ¦ Firewall throughput: 202.5 Mpps ¦ VPN throughput (512-bit IPSec): 160 Gbps ¦ VPN throughput (SSL): 9 Gbps ¦ SSL inspection throughput: 110 Gbps ¦ Application control throughput: 220 Gbps |
| Capacity | Concurrent TCP sessions: 200000000 ¦ New TCP sessions per second: 3000000 ¦ Firewall policies: 200000 ¦ Gateway to gateway IPSec VPN Tunnels: 16000 ¦ Client to gateway IPSec VPN tunnels: 90000 ¦ Concurrent SSL VPN users: 30000 ¦ SSL inspection CPS: 50000 ¦ SSL inspection concurrent sessions: 18000000 ¦ Virtual domains: 10 ¦ Maximum virtual domains: 500 ¦ Number of FortiSwitches: 256 ¦ Number of FortiToken devices: 20000 |
| Status Indicators | Status, alarm, HA, power |
| Features | Zero Trust Network Access (ZTNA), SSL inspection, VPN support, IP tunnel acceleration, CAPWAP support, Virtual Extensible LAN (VXLAN) |
| Encryption Algorithm | SSL, TLS 1.3, 256-bit AES, 256-bit SHA |
| Power | |
| Power Device | Internal power supply - hot-plug |
| Installed Qty | 2 |
| Power Redundancy | Yes |
| Voltage Required | DC -48 - -60 V |
| Power Consumption Operational | 1328 Watt |
| 80 PLUS Certification | 80 PLUS |
| Software / System Requirements | |
| OS Provided | FortiOS |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% (non-condensing) |
| Processor / Memory / Storage | |
| Processors Installed | Fortinet FortiASIC CP9/DP3/NP6 |
| Hard Drive | SSD 1 TB x 2 - PCI Express (NVMe) |
