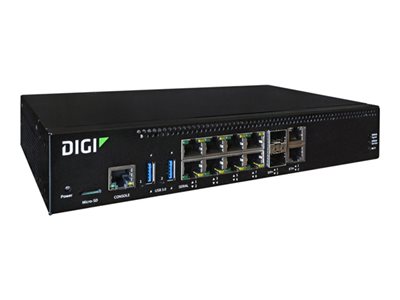

Device server - US power cord - with 1-year Digi LifeCycle Assurance - 8 ports - RS-232, 10GbE - Wi-Fi 5 - 2.4 GHz, 5 GHz - rack-mountable
| Main Specifications | |
|---|---|
| Product Description | Digi Connect EZ 8 Wi-Fi - device server - US power cord - Wi-Fi 5 - with 1-year Digi LifeCycle Assurance |
| Device Type | Device server |
| Bundled Services | 1-year Digi LifeCycle Assurance |
| Form Factor | Rack-mountable |
| Localization | United States |
| RAM | 256 MB |
| Flash Memory | 4 GB |
| Ports Qty | 8 |
| Data Link Protocol | RS-232, Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Frequency Band | 2.4 GHz, 5 GHz |
| Capacity | Maximum number of access points: 2 ¦ Maximum number of clients: 10 |
| Included Accessories | Rack ears, antennas, power cable (US) |
| Power | AC 100-240 V |
| Dimensions (WxDxH) | 10.2 in x 6.3 in x 1.7 in |
| Manufacturer Warranty | 5-year warranty |
| General | |
| Device Type | Device server |
| Bundled Services | 1-year Digi LifeCycle Assurance |
| Width | 10.2 in |
| Depth | 6.3 in |
| Height | 1.7 in |
| Localization | United States |
| Expansion / Connectivity | |
| Interfaces | 2 x 10 Gigabit Ethernet - SFP+ ¦ 2 x 1000Base-T - RJ-45 ¦ 8 x RS-232 - RJ-45 ¦ 2 x USB 3.1 Gen 1 - Type A ¦ 1 x console - RJ-45 ¦ 2 x antenna - SMA |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - 5 years ¦ Technical support - 1 year |
| Miscellaneous | |
| Included Accessories | Rack ears, antennas, power cable (US) |
| Compliant Standards | IEC 62368-1, IEC 60950-1, CB, EN 62311, UL 62368-1, UL 60950-1, RED, FCC Part 15 Subpart B, ICES-003, CISPR 32, CISPR 35 |
| Networking | |
| Form Factor | Rack-mountable |
| Ports Qty | 8 |
| Connectivity Technology | Wired, wireless |
| Data Link Protocol | RS-232, Ethernet, Fast Ethernet, Gigabit Ethernet, 10 Gigabit Ethernet, IEEE 802.11a, IEEE 802.11ac, IEEE 802.11b, IEEE 802.11g, IEEE 802.11n |
| Remote Management Protocol | SNMP 3, HTTP, HTTPS, Telnet, SSH, NTP, SMTP, SCP, Syslog |
| Frequency Band | 2.4 GHz, 5 GHz |
| Capacity | Maximum number of access points: 2 ¦ Maximum number of clients: 10 |
| Status Indicators | Power, WWAN, Wi-Fi, Ethernet link/activity, serial, USB, console |
| Features | Auto-sensing per device, Wireless Client Mode, Access Point operational mode, single-stream (1x1), SISO technology |
| Encryption Algorithm | WPA2-Enterprise, WPA2-Personal, WPA3-Personal, WPA-Enterprise |
| Authentication Method | TACACS+, LDAP, RADIUS |
| Power | |
| Power Device | External power adapter |
| Voltage Required | AC 100-240 V |
| Software / System Requirements | |
| Software Included | Digi Remote Manager Premier, Digi Navigator |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 122 °F |
| Humidity Range Operating | 5 - 95% (non-condensing) |
| Communications | |
| Supported Flash Memory Cards | microSD, microSDHC, microSDXC |
| Processor / Memory / Storage | |
| RAM | 256 MB |
| Flash Memory | 4 GB |
| Dimensions & Weight (Shipping) | |
| Shipping Width | 13.8 in |
| Shipping Depth | 11.2 in |
| Shipping Height | 6.1 in |
| Shipping Weight | 7.1 lbs |
