Server - rack-mountable 1U - 2-way - 1 x Xeon Gold up to 4 GHz - RAM 128 GB - SATA/SAS/PCI Express - hot-swap 2.5" bay(s) - no HDD - Gigabit Ethernet - no OS - monitor: none - BTO
| Main Specifications | |
|---|---|

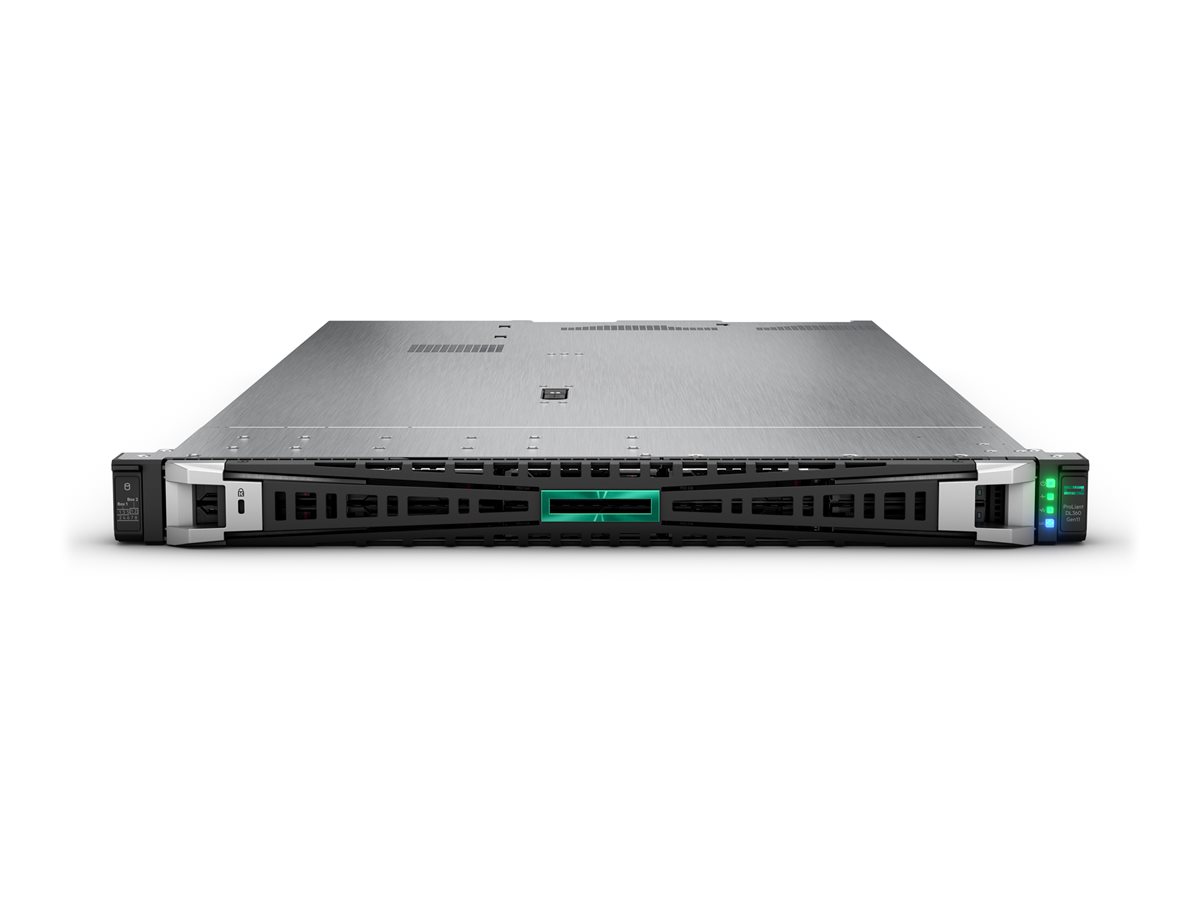

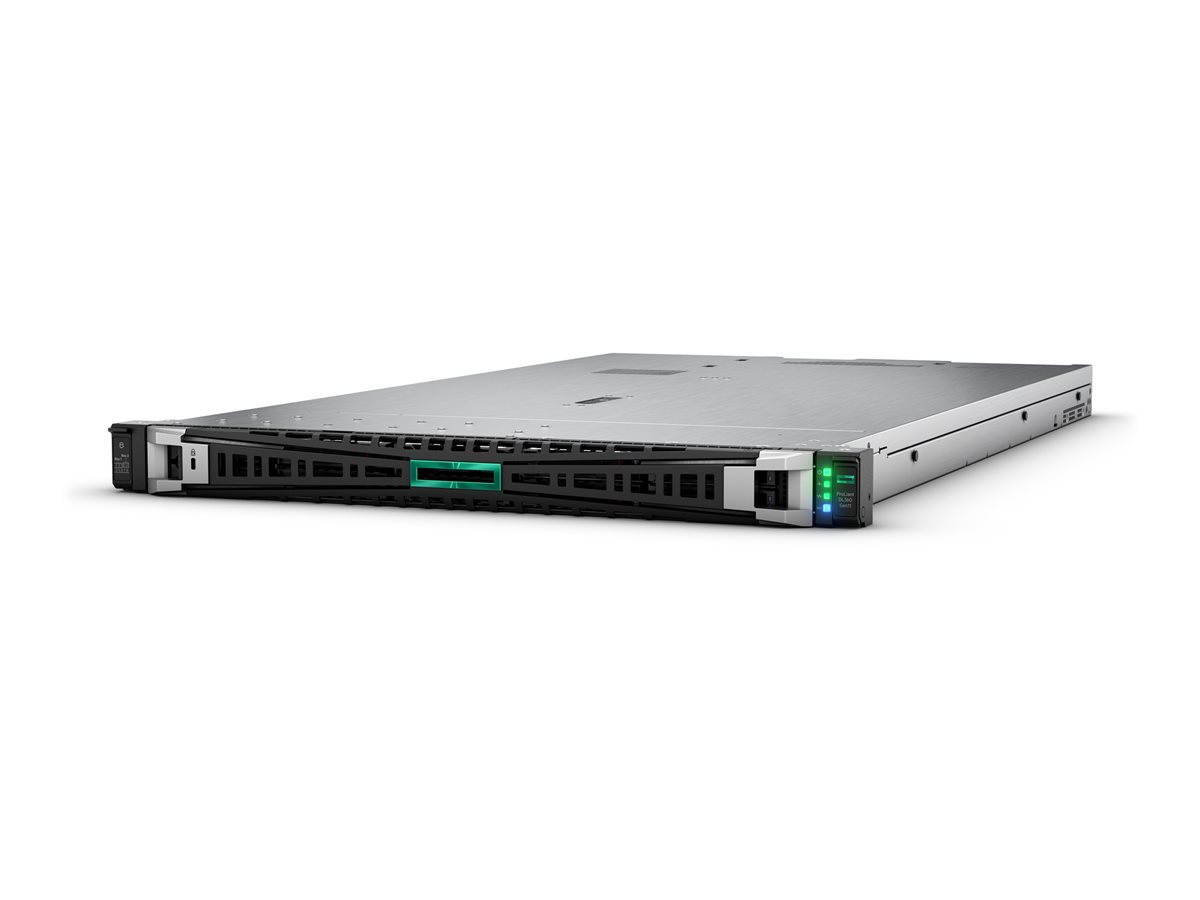

| Product Description | HPE ProLiant DL360 G11 - rack-mountable Xeon Gold 2.1 GHz - 128 GB - no HDD |
| Type | Server - rack-mountable |
| Height (Rack Units) | 1U |
| Localization | Region: United States, Canada |
| Server Scalability | 2-way |
| Processor | 1 x Intel Xeon Gold 2.1 GHz (up to 4 GHz, (32-core) |
| Processor Main Features | Intel Turbo Boost Technology 2, Hyper-Threading Technology |
| Cache Memory | 160 MB L3 cache |
| Cache Per Processor | 160 MB |
| RAM | 128 GB (installed) / 8 TB (max) - DDR5 SDRAM |
| Storage Controller | SATA (SATA 6Gb/s) (Intel VROC SATA Software RAID) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Optical Storage | No optical drive |
| Video Memory | 16 MB |
| Networking | 1GbE |
| Power Redundancy | Optional |
| OS Provided | No operating system |
| Software Included | HPE Server UEFI |
| Dimensions (WxDxH) | 17.1 in x 30.4 in x 1.7 in |
| Weight | 32.96 lbs |
| Pricing Type | BTO |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Built-in Devices | LED panel |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 2-way |
| Hot-Swap Bays Qty | 8 |
| Localization | Region: United States, Canada |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x external Universal Media Bay ¦ 4 (total) / 4 (free) x hot-swap 3.5" LFF |
| Slots | 2 (total) / 2 (free) x PCIe 5.0 x16 / Open Compute Project mezzanine (OCP) 3.0 (x16 mode) |

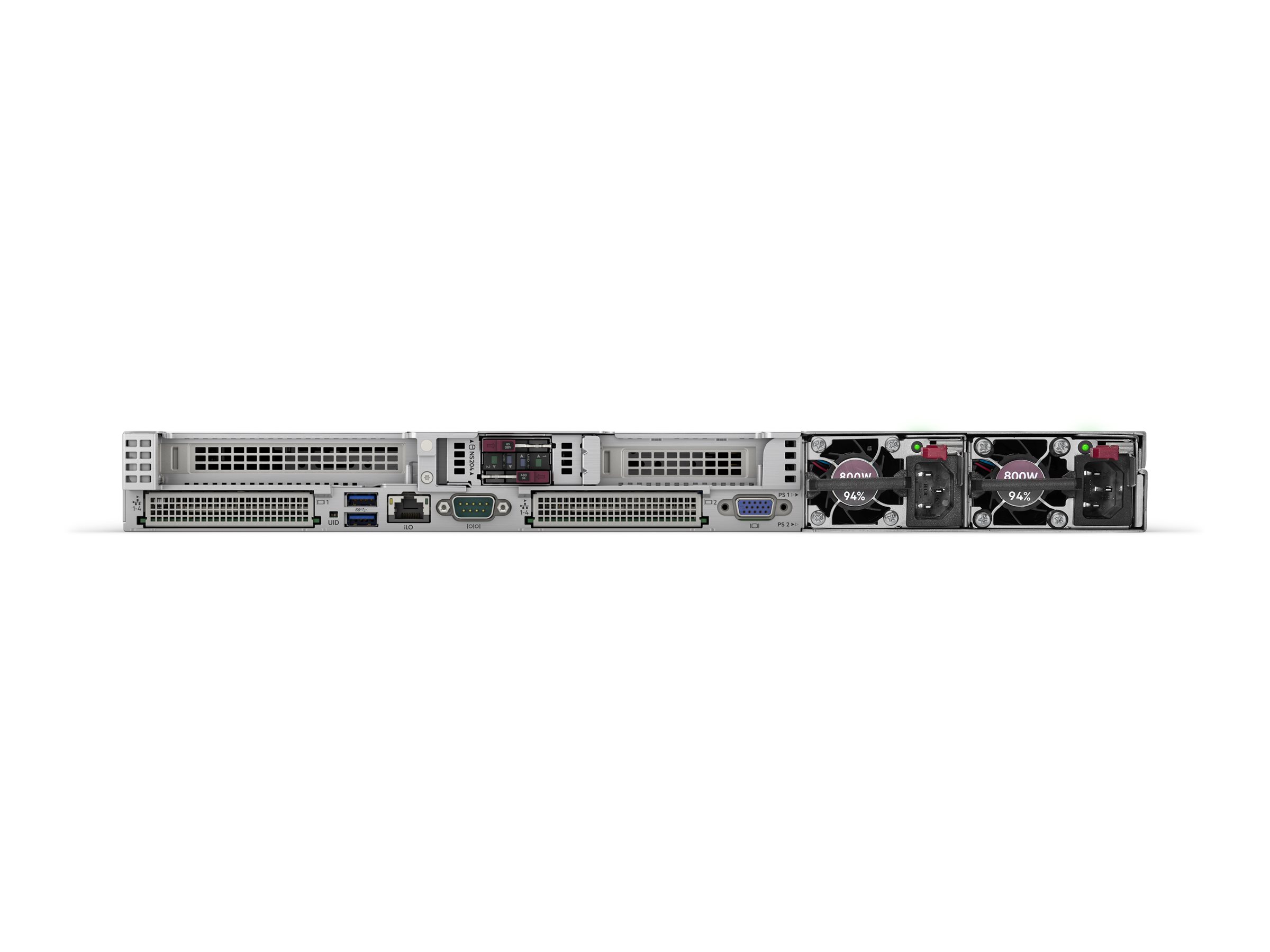

| Interfaces | 1 x HPE iLO - Type A (1 in front) ¦ 1 x HPE iLO - RJ-45 ¦ 4 x USB 3.2 Gen 1 (1 front, 2 rear, 1 internal) ¦ 1 x VGA ¦ 4 x LAN (Gigabit Ethernet) ¦ 1 x USB 2.0 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| Miscellaneous | |
| Included Accessories | 5 x standard fans, HPE Easy Install Rail 5 Kit withot CMA |
| Compliant Standards | ASHRAE Class A3, ASHRAE Class A4, TLS v1.2, AES, FIPS 140-2, IPv6 Ready, PCI DSS, WEEE 2002/95/EC, ACPI 6.4, ErP Lot 9 |
| Pricing Type | BTO |
| RAM | |
| Installed Size | 128 GB (installed) / 8 TB (max) |
| Technology | DDR5 SDRAM |
| Effective Memory Speed | 2800 MHz |
| Rated Memory Speed | 2800 MHz |
| Form Factor | DIMM 288-pin |
| Slots | 32 (total) / 24 (empty) |
| Features | Dual rank, registered, slots 17 - 32 are available in two-processor configuration only, HPE SmartMemory |
| Configuration Features | 8 x 16 GB |
| Networking | |
| Interface (Bus) Type | Open Compute Project mezzanine (OCP) 3.0 |
| Ethernet Ports | 4 x Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM5719 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | SNMP 3, SMASH CLP, IPMI 2.0 |
| Remote Management Controller | Integrated Lights-Out 6 |
| Features | PXE support, Wake on LAN (WoL) |
| Power | |
| Device Type | Power supply - hot-plug |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-240 V |
| Power Provided | 800 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Storage Controller | |
| Type | 1 x SATA |
| Controller Interface Type | SATA 6Gb/s |
| Storage Controller Name | Intel VROC SATA Software RAID |
| Channel Qty | 14 |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Cache Memory | |
| Installed Size | L3 cache - 160 MB |
| Cache Per Processor | 160 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Video Memory | 16 MB |
| Video Interfaces | VGA |
| Operating System / Software | |
| OS Provided | No operating system |
| Software | HPE Server UEFI |
| Hard Drive | |
| Type | No HDD |
| Dimensions & Weight | |
| Width | 17.1 in |
| Depth | 30.4 in |
| Height | 1.7 in |
| Weight | 32.96 lbs |
| Processor / Chipset | |
| CPU | Intel Xeon Gold |
| Clock Speed | 2.1 GHz |
| Max Turbo Speed | 4 GHz |
| Number of Cores | 32-core |
| CPU Qty | 1 |
| Max CPU Qty | 2 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Intel Turbo Boost Technology 2, Hyper-Threading Technology |
| Chipset Type | Intel C741 |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 3.0 |
