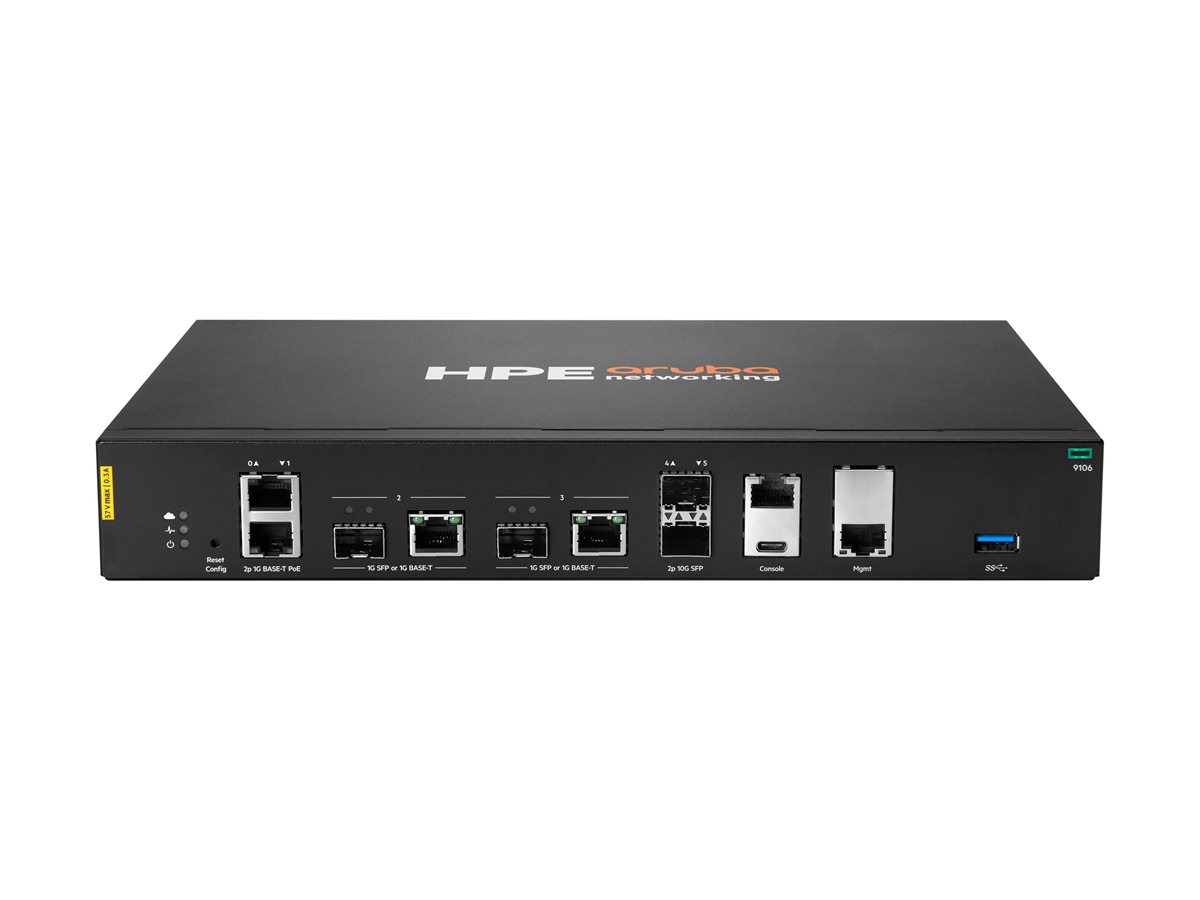

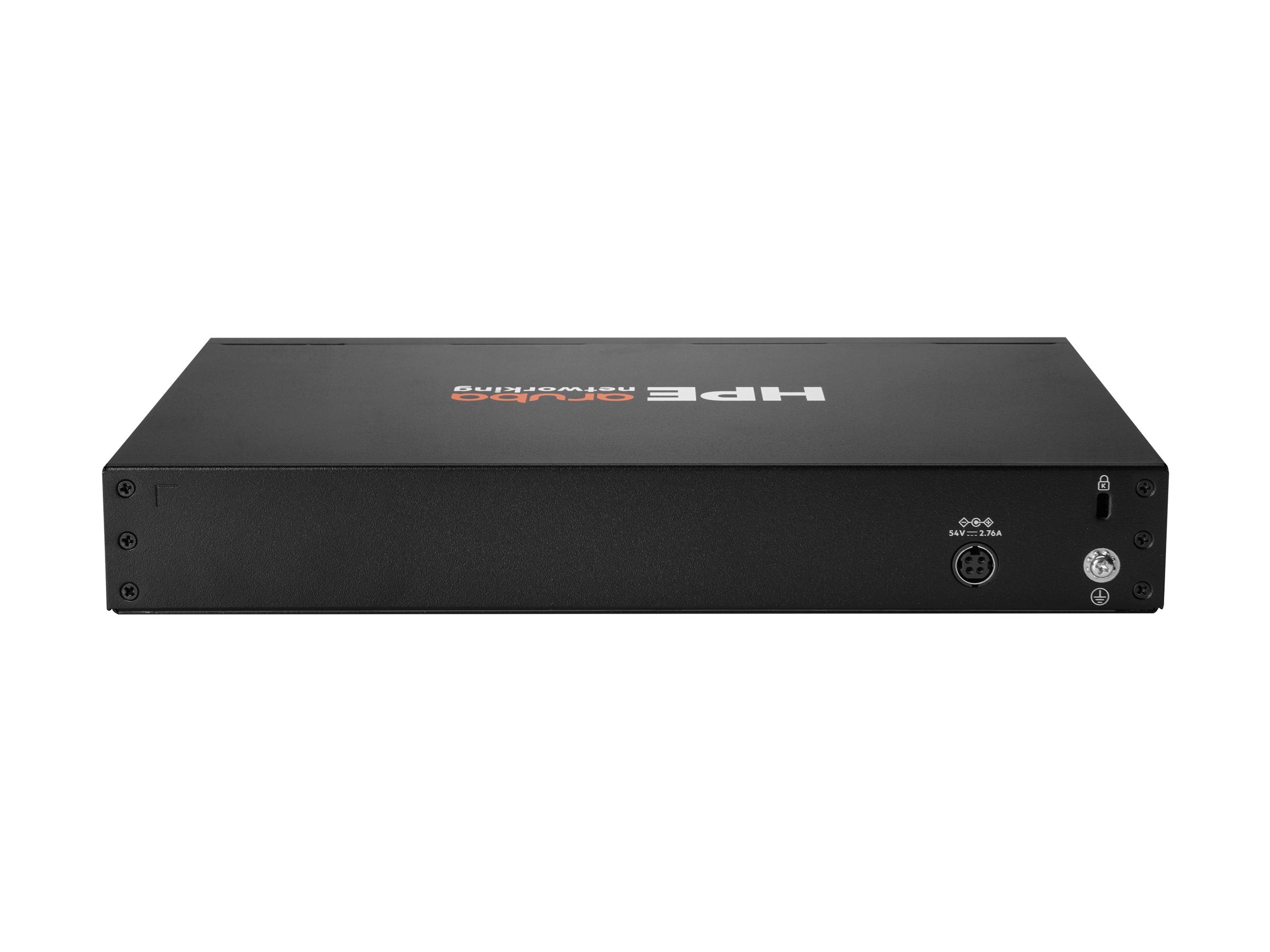

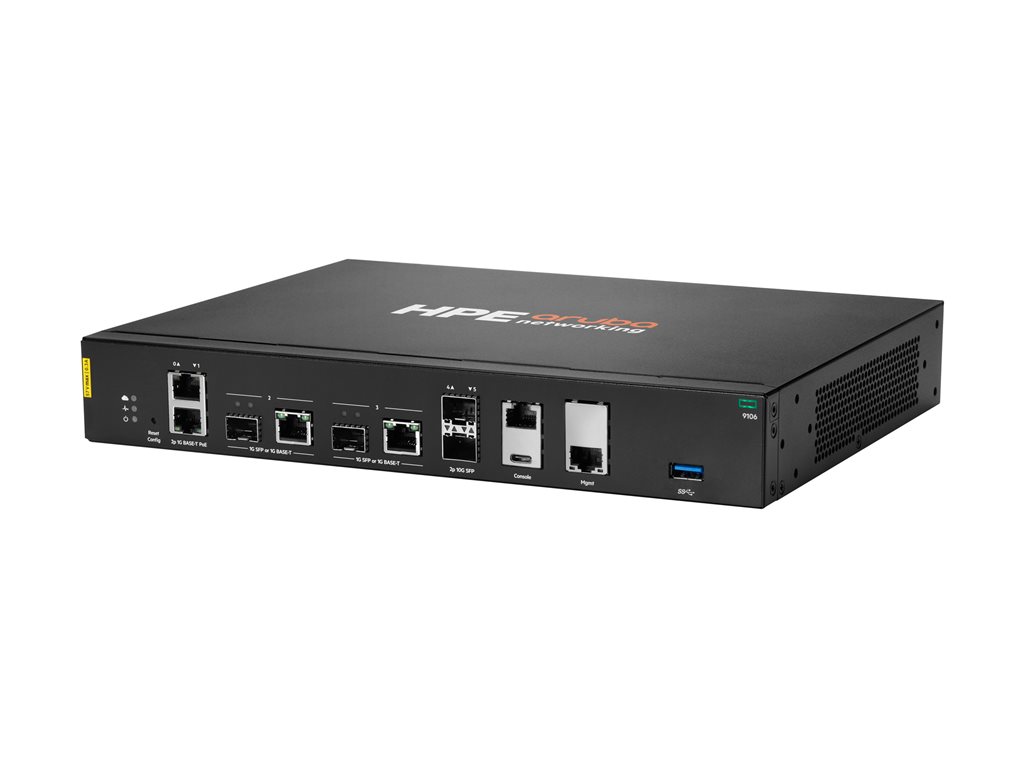

Gateway - hybrid - 6 ports - 10GbE - 1U - cloud-managed - BTO - desktop
| Main Specifications | |
|---|---|
| Product Description | HPE Aruba Networking 9106 (EG) - gateway - hybrid - cloud-managed |
| Device Type | Gateway |
| Form Factor | Desktop - 1U |
| Ports Qty | 6 |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
| Performance | Throughput: 10 Gbps ¦ GRE encrypted throughput: 10 Gbps ¦ Encrypted throughput AES-CBC-128: 10 Gbps ¦ Encrypted throughput AES-CBC-256: 10 Gbps ¦ Encrypted throughput AES-GCM-128: 10 Gbps ¦ Encrypted throughput AES-GCM-256: 10 Gbps |
| Capacity | Maximum clients (user MAC): 8000 ¦ Maximum clients per cluster: 32000 ¦ Maximum devices (APs) per gateway: 2000 ¦ Maximum devices (APs) per cluster: 4000 ¦ Maximum data path/ firewall sessions: 2000000 ¦ Concurrent IPSec tunnels: 16000 ¦ ARP table: 16000 ¦ DHCP clients: 16000 ¦ Maximum bridge table: 256000 ¦ IPv4 routes (static): 2000 ¦ IPv6 neighbor table entries: 32000 ¦ Maximum routes: 32000 ¦ Access lists: 2678 ¦ Configurable bandwidth contracts: 1000 |
| Included Accessories | Rack mounting kit (2 post) |
| OS Required | ArubaOS 10.7.2.1, ArubaOS 8.1.3.1 |
| Power Over Ethernet (PoE) Supported | PoE |
| Power | AC 100-240 V (50/60 Hz) |
| Power Redundancy | Optional |
| Pricing Type | BTO |
| Dimensions (WxDxH) | 11.6 in x 7.9 in x 1.7 in |
| Weight | 5.08 lbs |
| Manufacturer Warranty | 1-year warranty |
| General | |
| Device Type | Gateway |
| Height (Rack Units) | 1U |
| Width | 11.6 in |
| Depth | 7.9 in |
| Height | 1.7 in |
| Weight | 5.08 lbs |
| Expansion / Connectivity | |
| Interfaces | 2 x 10 Gigabit Ethernet - SFP+ ¦ 2 x 1000Base-T - RJ-45/SFP ¦ 1 x console - RJ-45 ¦ 1 x console - USB-C ¦ 1 x management - RJ-45 ¦ 1 x USB 3.0 - Type A ¦ 2 x Ethernet 1000 - RJ-45 - 60 W |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 1 year ¦ Technical support - software application support - 90 days |
| Miscellaneous | |
| Included Accessories | Rack mounting kit (2 post) |
| MTBF | 236,076 hours |
| Compliant Standards | CSA 62368-1: 2014, UL 62368-1:2014, UL 62368-1:2019, CSA 62368-1: 2019, EN/IEC 62328-1 Second Edition, IEC/EN 62368-1 Third Edition, FCC Part 15 Class B, EN55032 Class B, ICES-003 Class B, CNS 13438 Class B, EN55035, EN 300 386, KS C 9832:2019, KS C 9835:2019, AS/NZS CISPR32 Class B, VCCI Class B |
| Pricing Type | BTO |
| Networking | |
| Form Factor | Desktop |
| Ports Qty | 6 |
| Connectivity Technology | Wired |
| Data Link Protocol | Gigabit Ethernet, 10 Gigabit Ethernet |
| Cloud-Managed | Yes |
| Performance | Throughput: 10 Gbps ¦ GRE encrypted throughput: 10 Gbps ¦ Encrypted throughput AES-CBC-128: 10 Gbps ¦ Encrypted throughput AES-CBC-256: 10 Gbps ¦ Encrypted throughput AES-GCM-128: 10 Gbps ¦ Encrypted throughput AES-GCM-256: 10 Gbps |
| Capacity | Maximum clients (user MAC): 8000 ¦ Maximum clients per cluster: 32000 ¦ Maximum devices (APs) per gateway: 2000 ¦ Maximum devices (APs) per cluster: 4000 ¦ Maximum data path/ firewall sessions: 2000000 ¦ Concurrent IPSec tunnels: 16000 ¦ ARP table: 16000 ¦ DHCP clients: 16000 ¦ Maximum bridge table: 256000 ¦ IPv4 routes (static): 2000 ¦ IPv6 neighbor table entries: 32000 ¦ Maximum routes: 32000 ¦ Access lists: 2678 ¦ Configurable bandwidth contracts: 1000 |
| Status Indicators | Status, power, cloud |
| Power | |
| Power Over Ethernet (PoE) Supported | PoE |
| Power Device | External power adapter |
| Installed Qty | 1 |
| Power Redundancy | Optional |
| Voltage Required | AC 100-240 V (50/60 Hz) |
| Power Provided | 165 Watt |
| Software / System Requirements | |
| OS Required | ArubaOS 10.7.2.1, ArubaOS 8.1.3.1 |
| Environmental Parameters | |
| Min Operating Temperature | 32 °F |
| Max Operating Temperature | 104 °F |
| Humidity Range Operating | 10 - 90% RH (non-condensing) |
