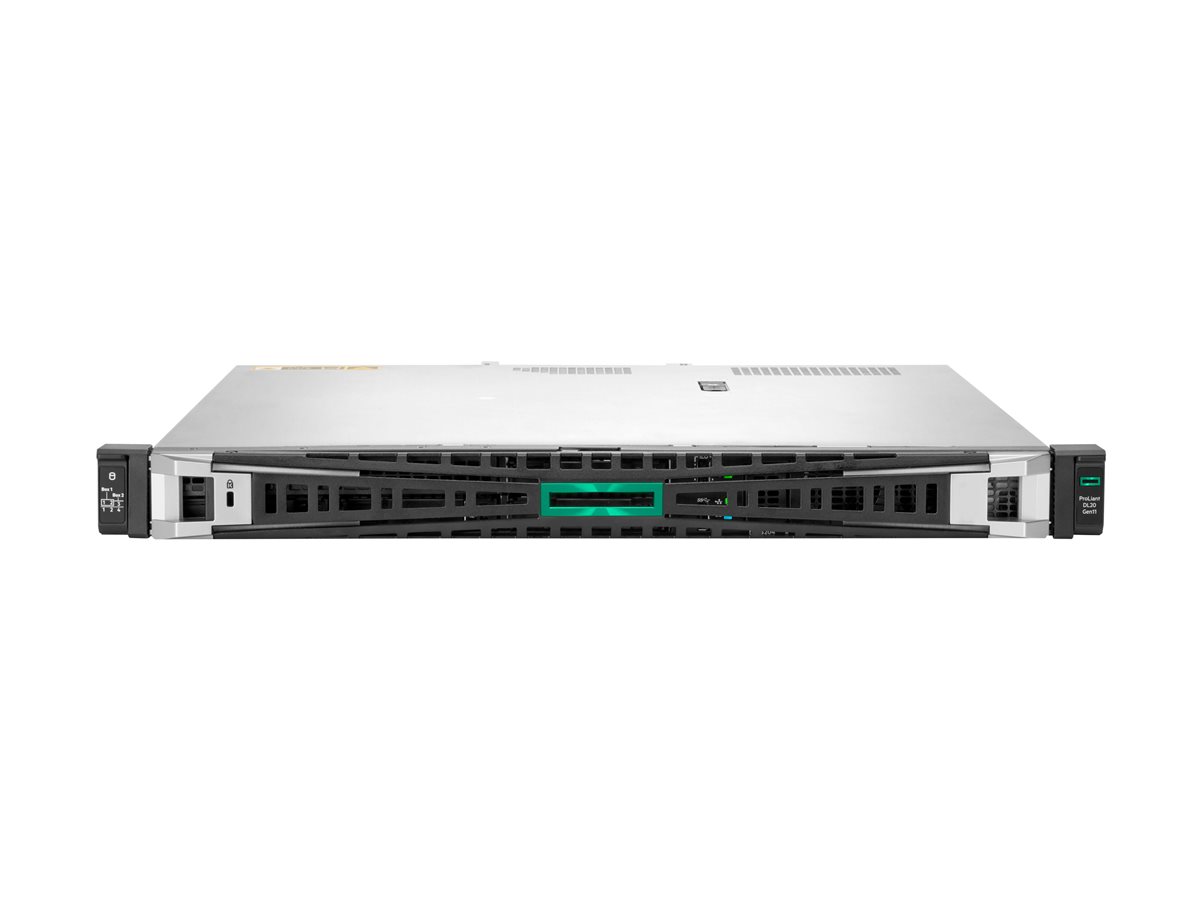

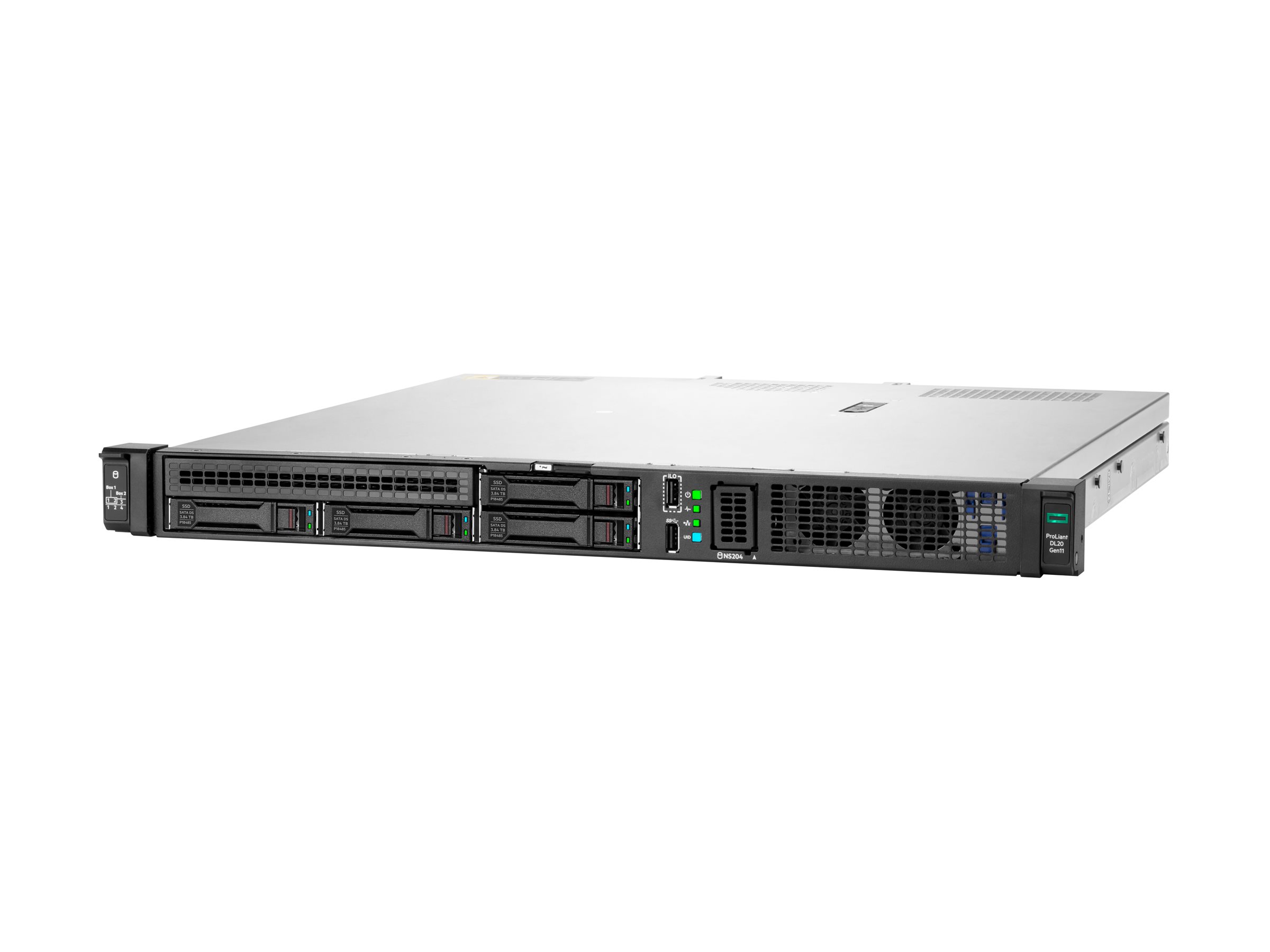

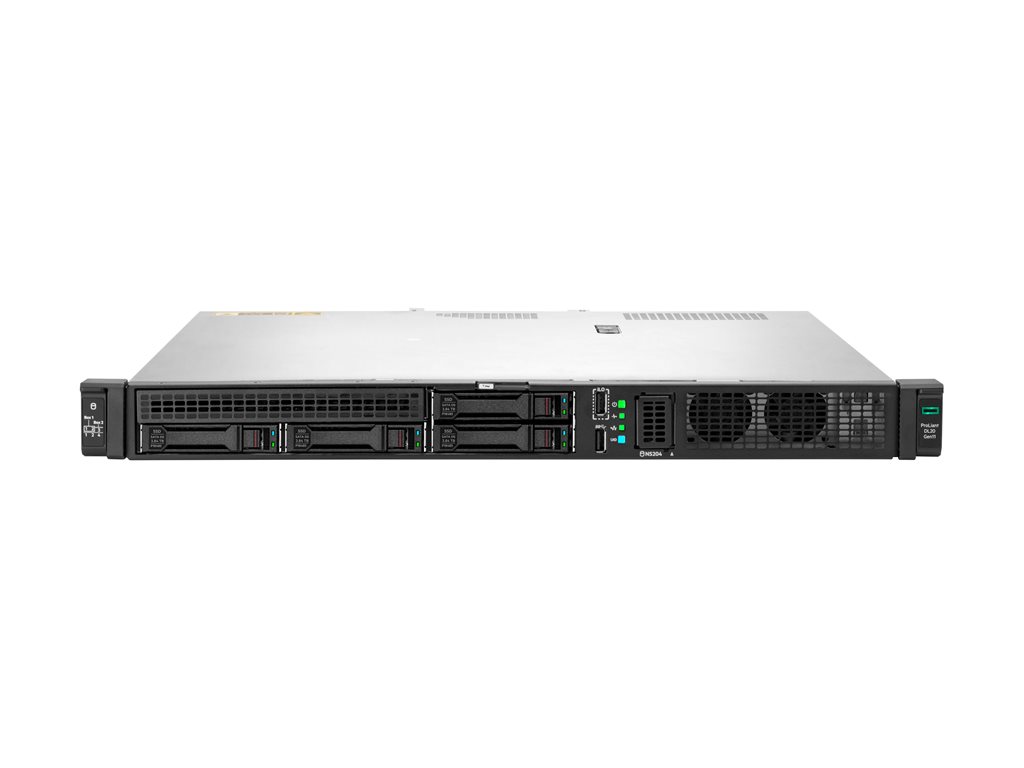

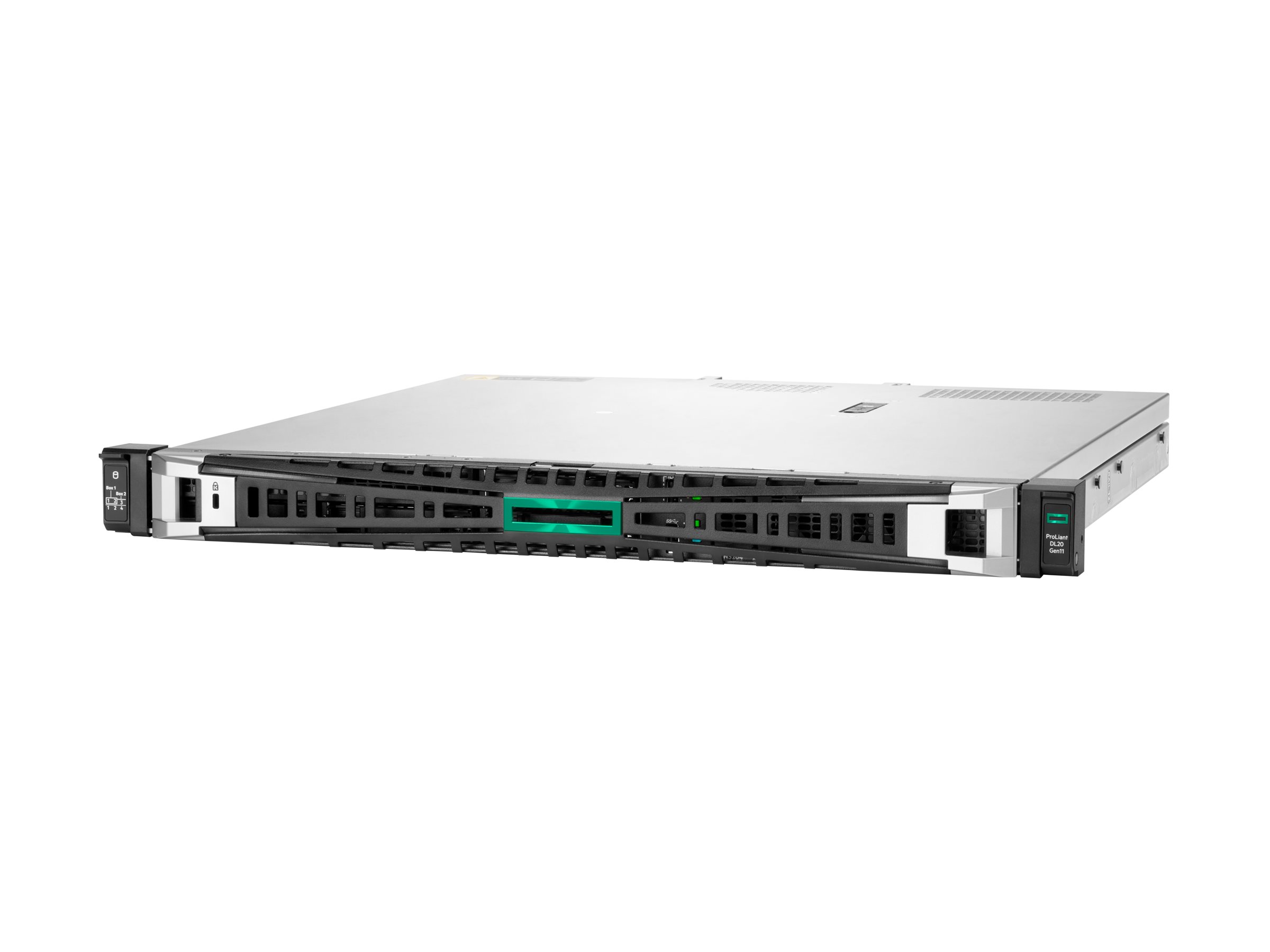

Server - rack-mountable 1U - 1-way - 1 x Xeon 6333P / up to 5.2 GHz - RAM 32 GB - SATA - hot-swap 2.5" bay(s) - HDD 2 x 1.2 TB - Matrox G200 - Gigabit Ethernet - no OS - monitor: none - Smart Choice
| Main Specifications | |
|---|---|
| Product Description | HPE ProLiant DL20 Gen11 - rack-mountable Xeon 6333P 3.1 GHz - 32 GB - HDD 2 x 1.2 TB |
| Type | Server - rack-mountable |
| Height (Rack Units) | 1U |
| Localization | Region: North America |
| Server Scalability | 1-way |
| Processor | 1 x Intel Xeon 6333P / 3.1 GHz (up to 5.2 GHz, (6-core) |
| Processor Main Features | Intel Turbo Boost Technology 2 |
| Cache Memory | 18 MB L3 cache |
| Cache Per Processor | 18 MB |
| RAM | 32 GB (installed) / 128 GB (max) - DDR5 SDRAM - ECC |
| Storage Controller | SATA (Intel VROC SATA Software RAID) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | 2 x HDD 1.2 TB |
| Optical Storage | No optical drive |
| Graphics Controller | Matrox G200 |
| Video Memory | 16 MB |
| Networking | 1GbE |
| Power Redundancy | Yes |
| OS Provided | No operating system |
| Software Included | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE iLO Advanced, HPE Compute Ops Management (subscription included) |
| Dimensions (WxDxH) | 17.1 in x 14.9 in x 1.7 in |
| Weight | 19.84 lbs |
| Manufacturer Selling Program | HPE Smart Choice |
| Environmental Standards | ENERGY STAR Qualified |
| Manufacturer Warranty | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| General | |
| Type | Server |
| Product Form Factor | Rack-mountable - 1U |
| Built-in Devices | LED panel |
| Embedded Security | Trusted Platform Module (TPM 2.0) Security Chip |
| Server Scalability | 1-way |
| Hot-Swap Bays Qty | 4 |
| Localization | Region: North America |
| Expansion / Connectivity | |
| Bays | 4 (total) / 2 (free) x hot-swap 2.5" SFF ¦ 1 (total) / 1 (free) x external |
| Slots | 1 (total) / 1 (free) x PCIe 5.0 x16 - half-length, full-height (x16 mode) ¦ 1 (total) / 1 (free) x Open Compute Project mezzanine (OCP) 3.0 |

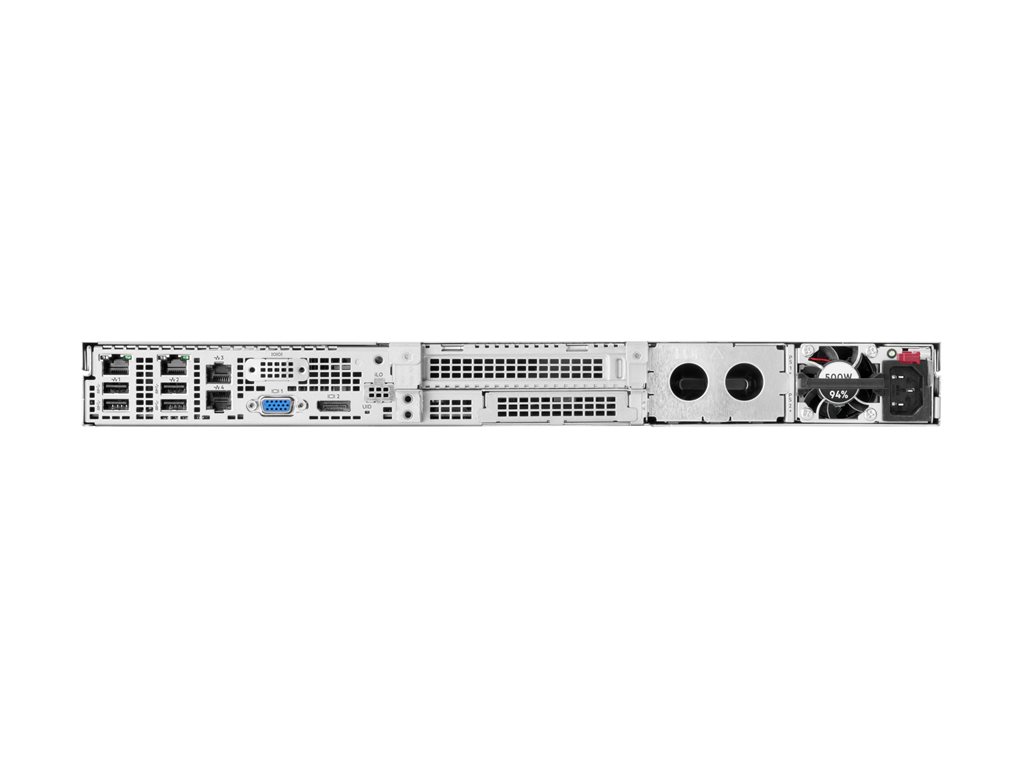

| Interfaces | 1 x HPE iLO - Type A (1 in front) (service port) ¦ 5 x USB 3.2 Gen 1x1 - Type A (1 front, 4 rear) ¦ 2 x USB 3.2 Gen 2x2 (2 internal) ¦ 1 x DisplayPort ¦ 1 x VGA ¦ 4 x LAN (Gigabit Ethernet) - RJ-45 |
| Manufacturer Warranty | |
| Service & Support | Limited warranty - parts and labor - 3 years - on-site - response time: next business day |
| Miscellaneous | |
| Included Accessories | 3 performance single rotor non-hot plug and non-redundant fans |
| Compliant Standards | ACPI 6.3, PCIe 5.0, SMBIOS 3.2, UEFI 2.9, UEFI Class 3, Redfish API, AES, Triple DES, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, Active Directory v1.0, EU Lot 9, FIPS 140-2, PCI DSS, IPv6 Ready, WEEE 2002/95/EC, DMTF |
| Manufacturer Selling Program | HPE Smart Choice |
| RAM | |
| Installed Size | 32 GB (installed) / 128 GB (max) |
| Technology | DDR5 SDRAM - ECC |
| Effective Memory Speed | 4400 MT/s |
| Rated Memory Speed | 4400 MT/s |
| Form Factor | DIMM 288-pin |
| Slots | 4 (total) / 3 (empty) |
| Features | HPE Standard Memory, unbuffered |
| Configuration Features | 1 x 32 GB |
| Networking | |
| Ethernet Ports | 4 x Gigabit Ethernet |
| Ethernet Controller | Broadcom BCM5719 |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Remote Management Protocol | IPMI 2.0, SNMP 3 |
| Features | ACPI support, PXE support, Wake on LAN (WoL) |
| Power | |
| Device Type | Power supply |
| Power Redundancy | Yes |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Installed Qty | 2 |
| Max Supported Qty | 2 |
| Voltage Required | AC 100-120/200-240 V |
| Power Provided | 500 Watt |
| 80 PLUS Certification | 80 PLUS Platinum |
| Environmental Parameters | |
| Min Operating Temperature | 50 °F |
| Max Operating Temperature | 95 °F |
| Humidity Range Operating | 8 - 90% RH (non-condensing) |
| Storage Controller | |
| Type | 1 x SATA |
| Storage Controller Name | Intel VROC SATA Software RAID |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 10 |
| Cache Memory | |
| Installed Size | L3 cache - 18 MB |
| Cache Per Processor | 18 MB |
| Optical Storage | |
| Type | No optical drive |
| Monitor | |
| Monitor Type | None. |
| Graphics Controller | |
| Graphics Processor | Matrox G200 |
| Video Memory | 16 MB |
| Video Interfaces | DisplayPort, VGA |
| Operating System / Software | |
| OS Provided | No operating system |
| Software | HPE iLO Standard with Intelligent Provisioning, HPE OneView Standard (free download), HPE iLO Advanced, HPE Compute Ops Management (subscription included) |
| Hard Drive | |
| Type | HDD |
| Capacity | 2 x 1.2 TB |
| Dimensions & Weight | |
| Width | 17.1 in |
| Depth | 14.9 in |
| Height | 1.7 in |
| Weight | 19.84 lbs |
| Processor / Chipset | |
| CPU | Intel Xeon 6333P |
| Clock Speed | 3.1 GHz |
| Max Turbo Speed | 5.2 GHz |
| Number of Cores | 6-core |
| CPU Qty | 1 |
| Max CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Processor Main Features | Intel Turbo Boost Technology 2 |
| Chipset Type | Intel C262 |
| Sustainability Information | |
| ENERGY STAR Certified | Yes |
| ENERGY STAR Version | 4.0 |
